Recommended Weight Limit 320 lbs
Recommended User Height 5'2" - 6'1"
Seat Width 18.3"
Shoulder Width 25"
Chair Dimensions
Dimensions Upright 62.2" L x 33.1" W x 47.6" H
Dimensions Reclined 77.2" L x 33.1" W x 41.3" H
Distance from Wall 4"
Chair Weight 258.9 lbs
Shipping Information
Shipping Weight 302 lbs
Box Size 1 57.7" L x 30.3" W x 39.4" H
Box Size 2 50" L x 15" W x 26" H
Box Size 3 22.8" L x 19.7" W x 24.4" H
Massage System
Massage Track Type Long Track Massage from Neck to Buttock
Massage Mechanism 4D Human-Like Vario Motion™ Mechanism
Roller Type 3" 4D Node
Massage Techniques 6 Massage Techniques
Body Scan Technology Yes, Precise Body Scanning
Foot Rollers Yes, Foot and Sole Roller Massage
Adjustable Foot and Calf Massage Yes
Automatic Leg Length Detection Yes
Air Massage & Comfort
Air Massage Areas Neck, Shoulders, Arms, Hands, Seat, Thighs, Lumbar, Legs, Knees, Calves, and Feet
Total Airbags 64
Air Intensity Levels 5 Levels
Heat Therapy Legs, Knees, and Lumbar
Seat Adjustment Yes
Automatic Knee and Calf Adjustment Yes
Recline Adjustable Backrest and Footrest
Zero Gravity Yes, 2-Stage
Lie-Flat and Home Restore Yes, One Touch
Programs & Controls
Auto Programs 23 Automatic Programs
Spot Massage Yes
Custom Memory Programs 3 Custom Memory Programs
Maximum Massage Time 30 Minutes
Controller Wired Touch Screen Tablet
Armrest Controls Touch Dial Controls and Quick Access Buttons Embedded in Armrest
Voice Control Alexa Voice Control and Google Integration
App Control iOS and Android Apps
Technology & Entertainment
Chair Doctor Chair Doctor Biometric Health Tracker
Bluetooth Speakers Yes
Speaker Power 14W, 2 Sides
USB-C Charging Yes, USB-C Fast Charger
Chromotherapy Yes, 7 Modes
Power & Safety
Power Voltage 110 - 120V
Rated Frequency 60Hz
Power Consumption 150W
FDA Listed Medical Device Yes
Child Safety Lock Yes
Legrest Safety Sensor Yes
Inductive-Stop Sensors in Footrest Yes
Overheating Protection Yes
Surge Protection Yes
Casters for Easy Moving Yes

Please measure your room, doorway, hallway, stairway, and delivery path before ordering. Large massage chairs may require partial disassembly for delivery through standard household doorways.

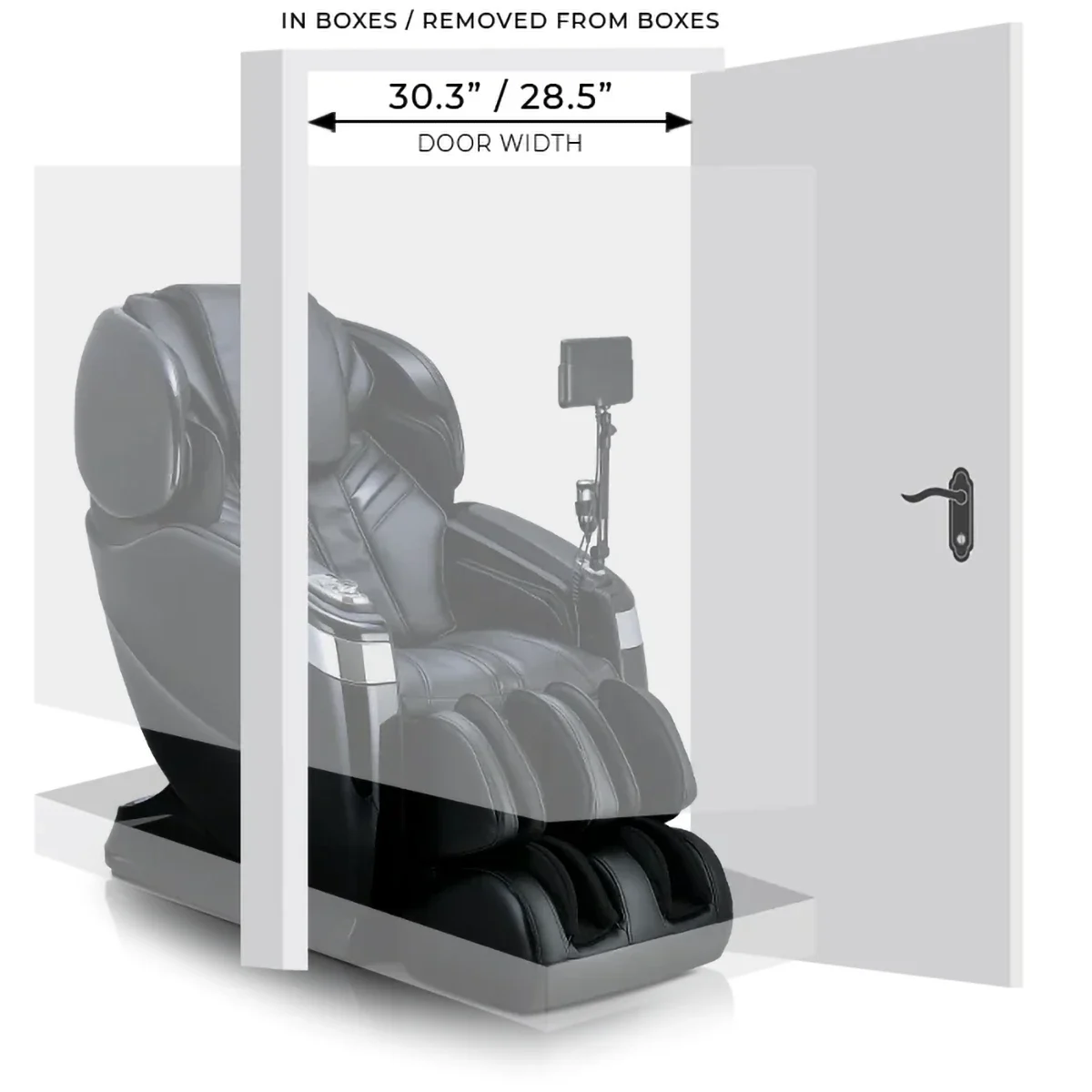

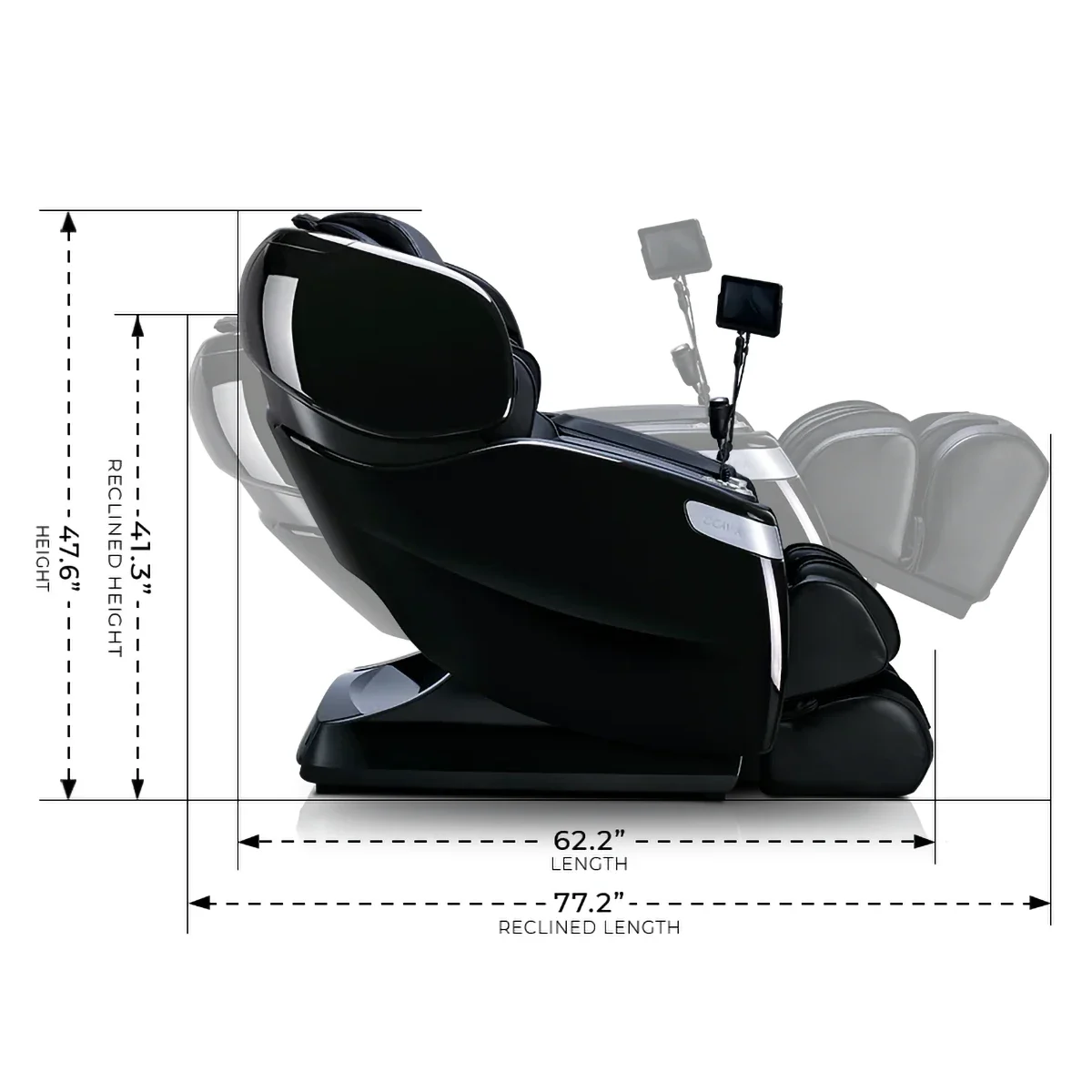

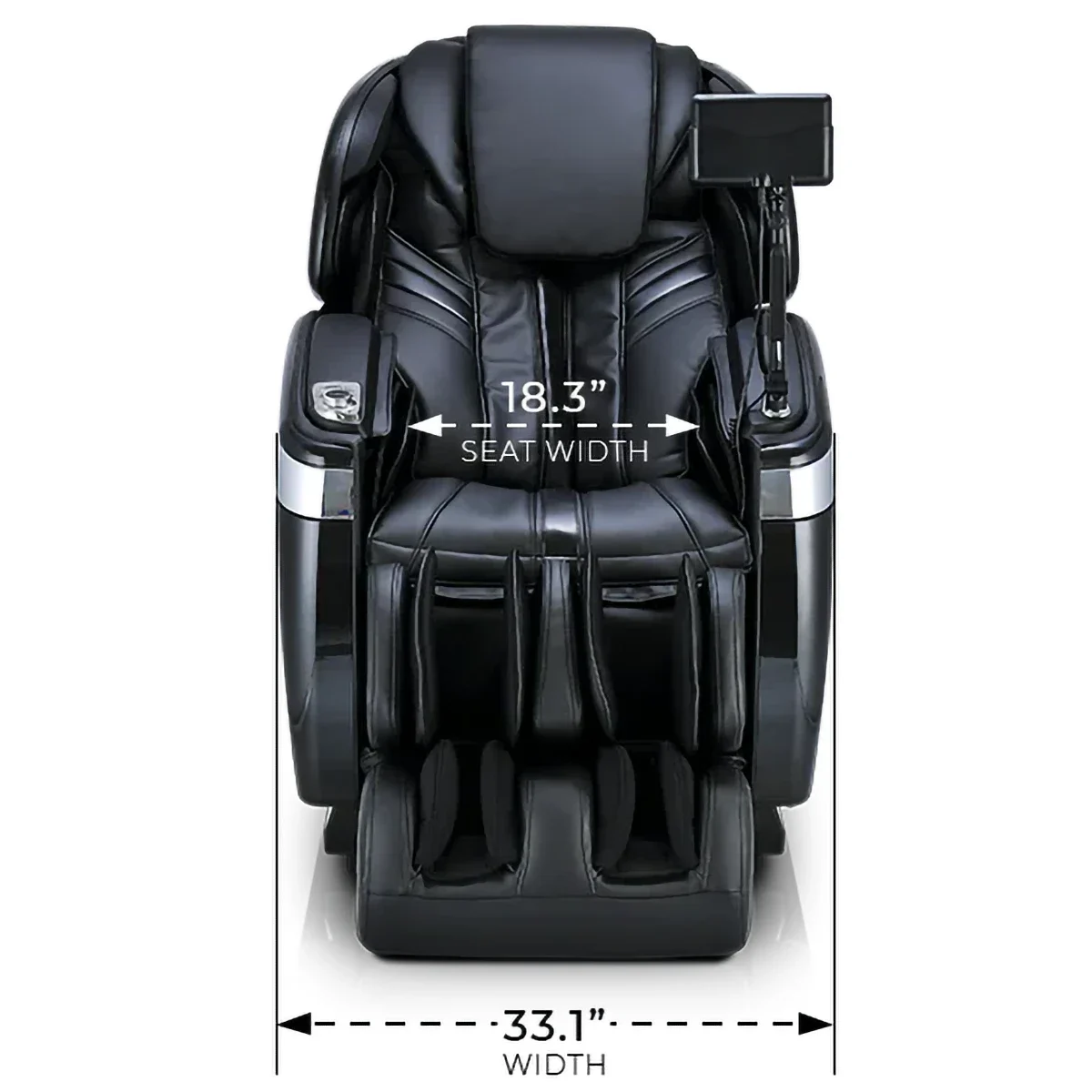

Ogawa Master Drive AI 2.0 massage chair 4 inch wall clearance Ogawa Master Drive AI 2.0 side dimensions with upright and reclined length Ogawa Master Drive AI 2.0 seat width and chair dimensions

Downloads

Download the Ogawa Master Drive AI 2.0 user manual and installation guide for operation, setup, safety, maintenance, and assembly instructions.

Download User Manual Download Installation Guide
