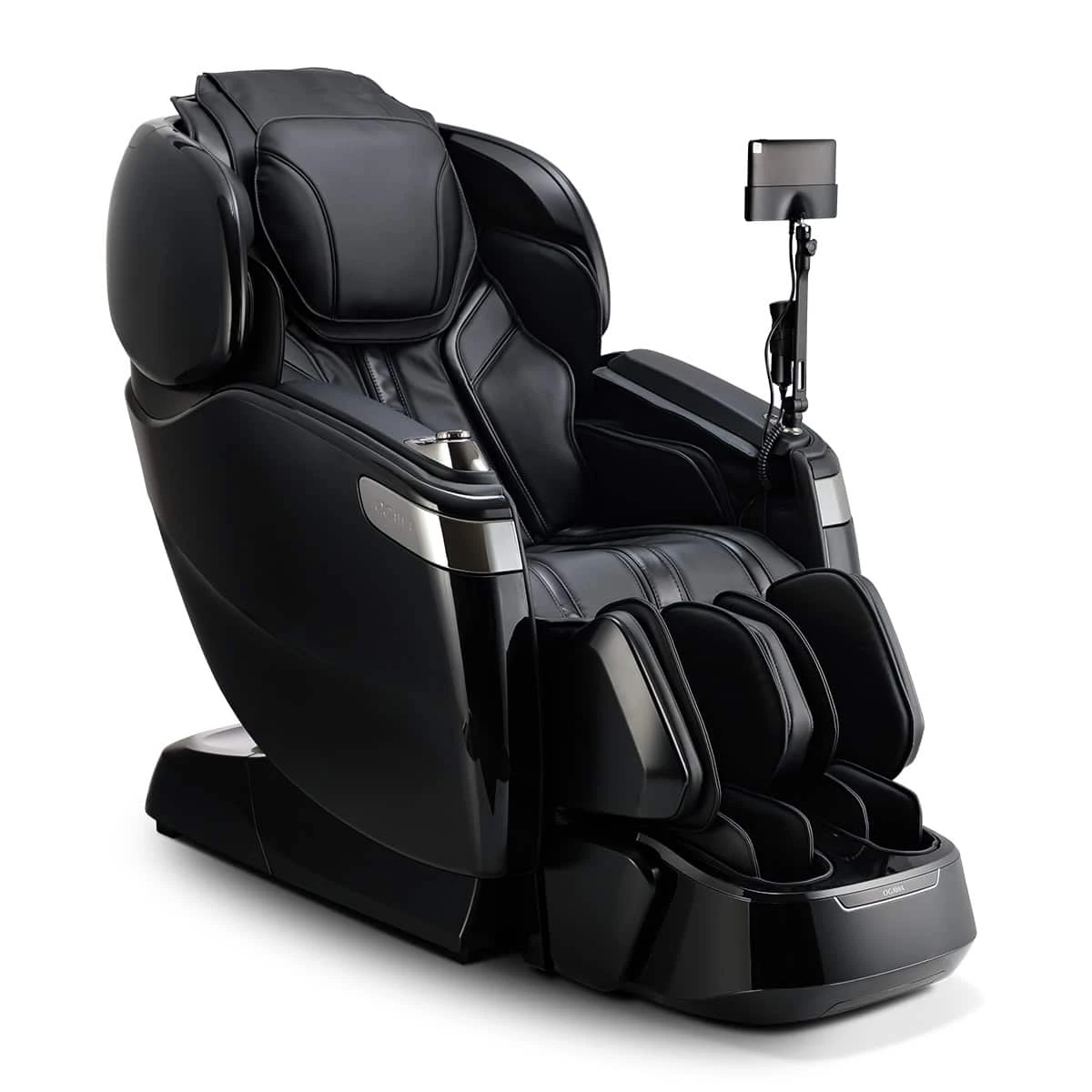

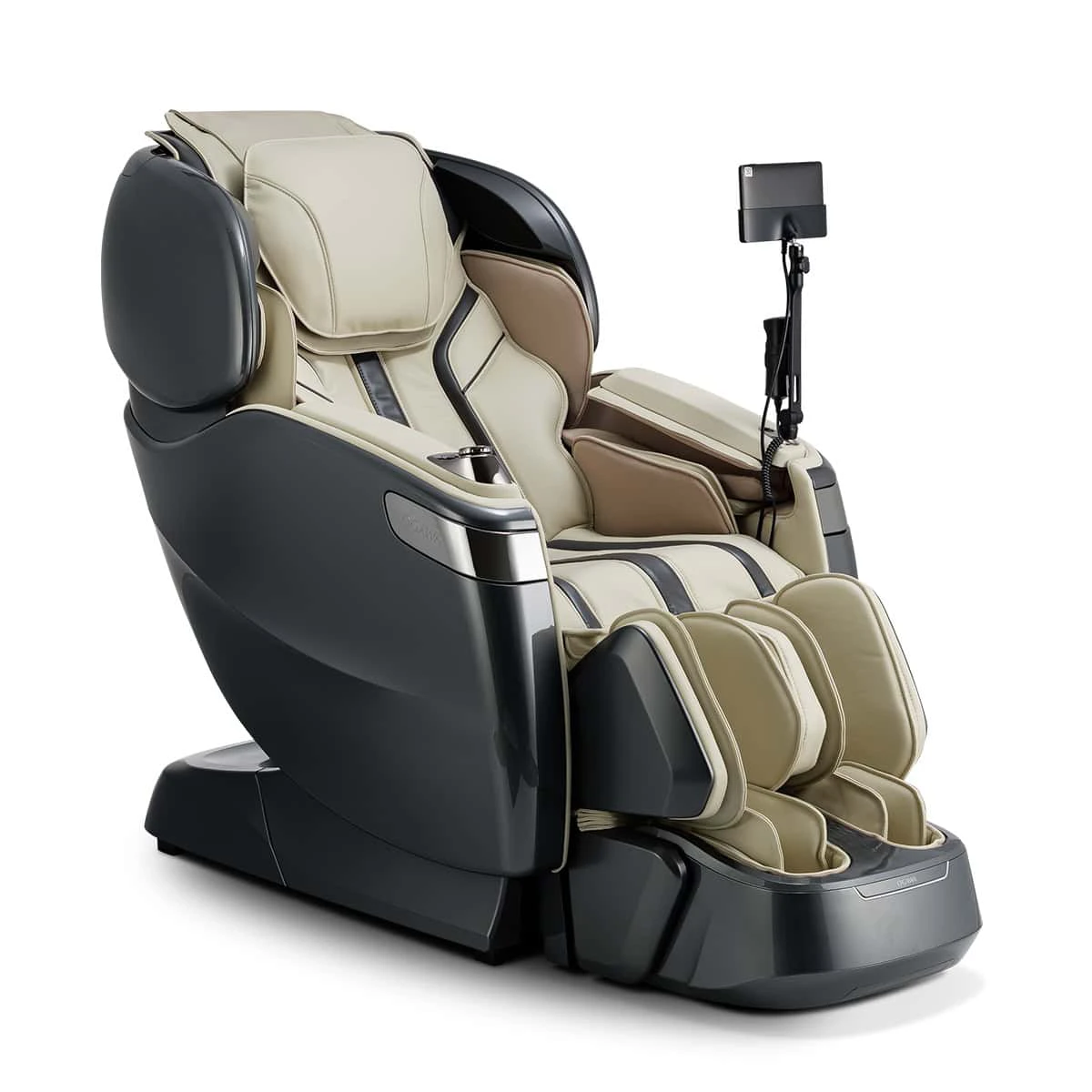

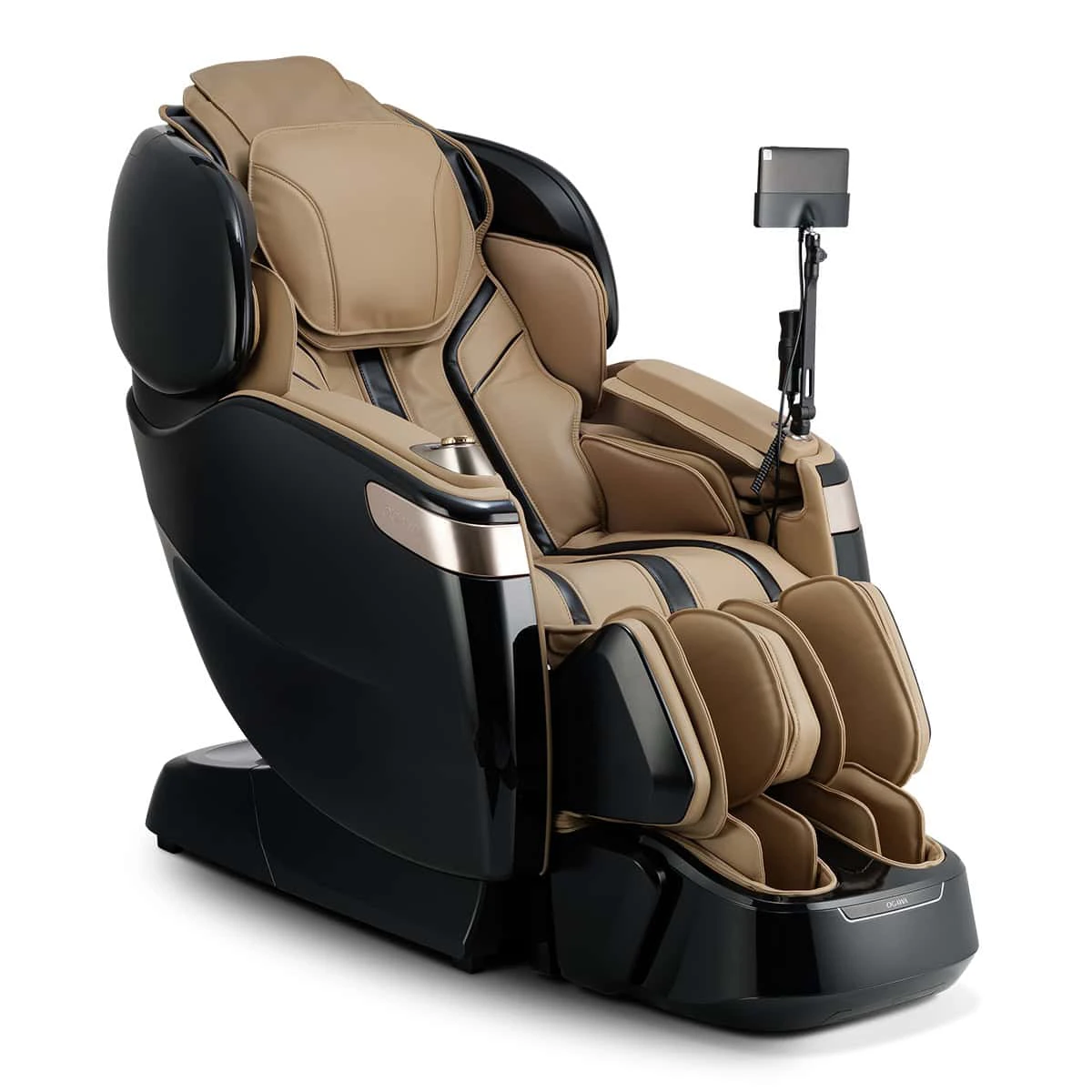

Ogawa 4D Fusion Master Drive Massage Chair
Dual 4D massage engines with intelligent full-body comfort
The Ogawa 4D Fusion Master Drive is designed for customers who want a flagship massage chair with dual 4D Vario Motion™ massage engines, Li Flex Track movement, AI-assisted body sensing, advanced stretching, air compression, heat therapy, reflexology foot massage, and smart everyday controls.
With independent upper and lower massage engines, biometric sensing, brushless motor technology, MotionFlex stretching, Chair Doctor, Smart Dial control, and a touchscreen tablet, Fusion Master Drive brings a more adaptive and refined massage experience into the home.
Best for
Users who want a premium massage chair with dual 4D massage engines, deep stretching, AI body sensing, heat comfort, foot reflexology, and advanced smart controls.
Massage feel
Fusion Master Drive is built for a balanced full-body massage, using separate upper and lower massage engines to support more precise work from the neck through the glutes and lower body.
Room fit
The space-saving recline helps reduce wall clearance needs, but customers should still measure the room, doorway, hallway, stairway, and delivery path before ordering.
Key Fusion Master Drive features
These are the main Ogawa 4D Fusion Master Drive features customers should understand before choosing this chair.

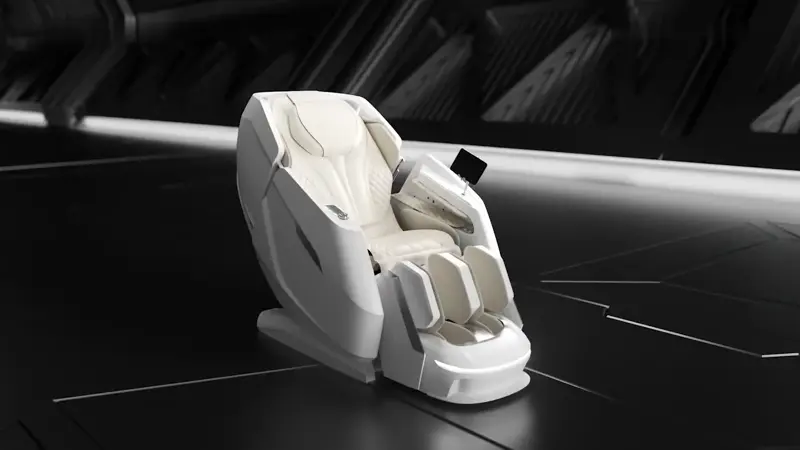

Dual 4D Vario Motion™ Massage Engines
The Fusion Master Drive uses two independent 4D massage engines to work the upper and lower body with more control. This helps the chair create a more balanced massage from the neck, shoulders, back, lumbar area, and glutes.
- Dual 4D engines work independently on different body zones.
- Designed to create a more lifelike massage rhythm.
- Helps improve precision for both upper-body and lower-body massage.

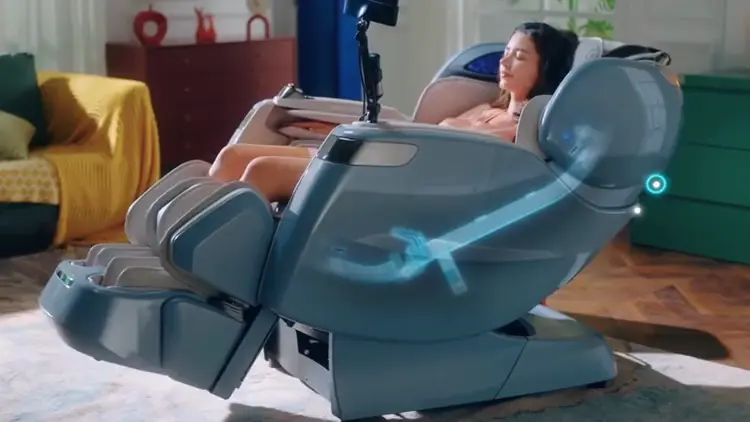

Li Flex Track for Smoother Recline and Stretch
The Li Flex Track is designed to flex through the transition area of the massage path, helping the rollers maintain smoother contact as the chair reclines and stretches the body.
- Supports massage coverage from the neck toward the lower body.
- Helps the chair move into a more natural recline position.
- Works with stretch and zero gravity programs for a deeper relaxation feel.

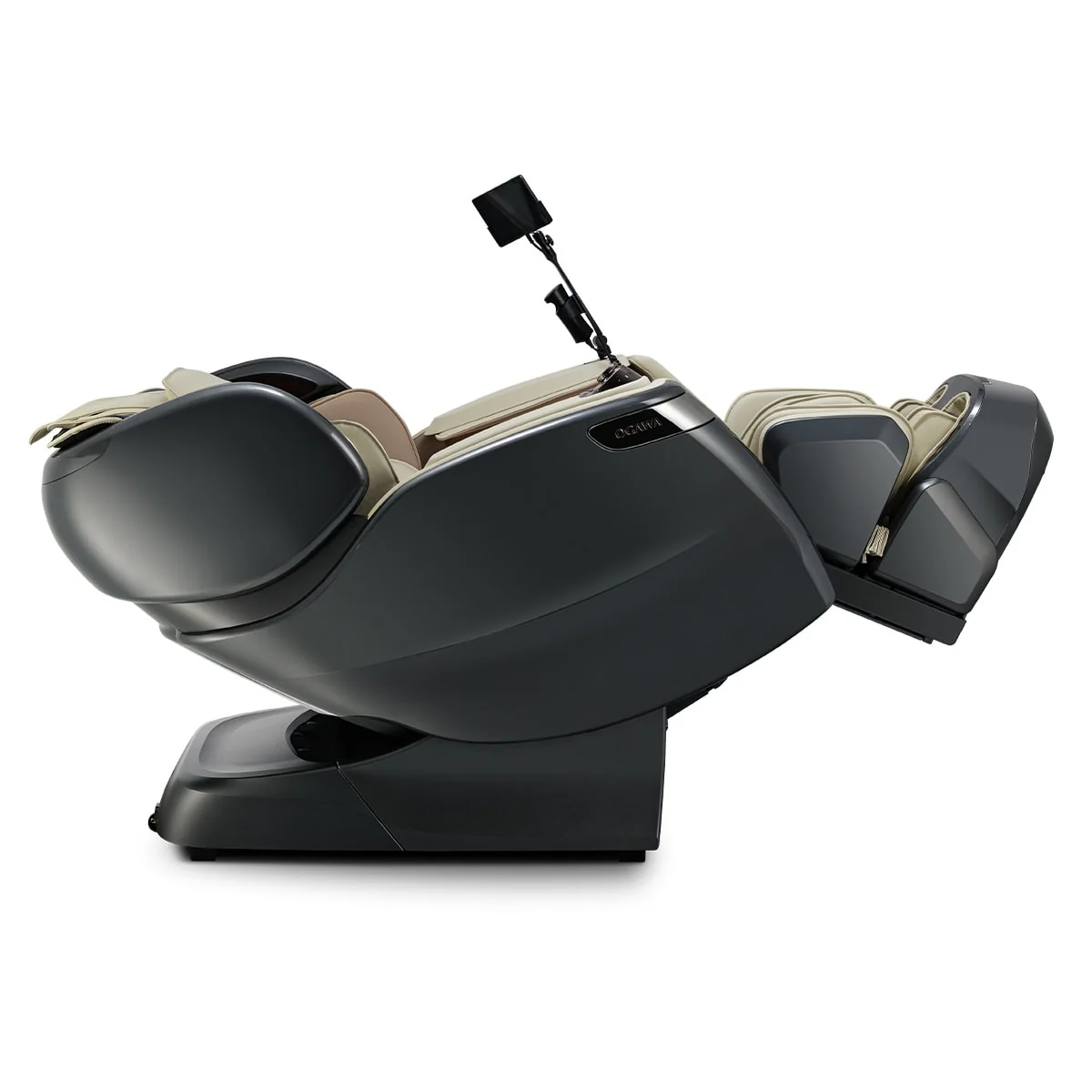

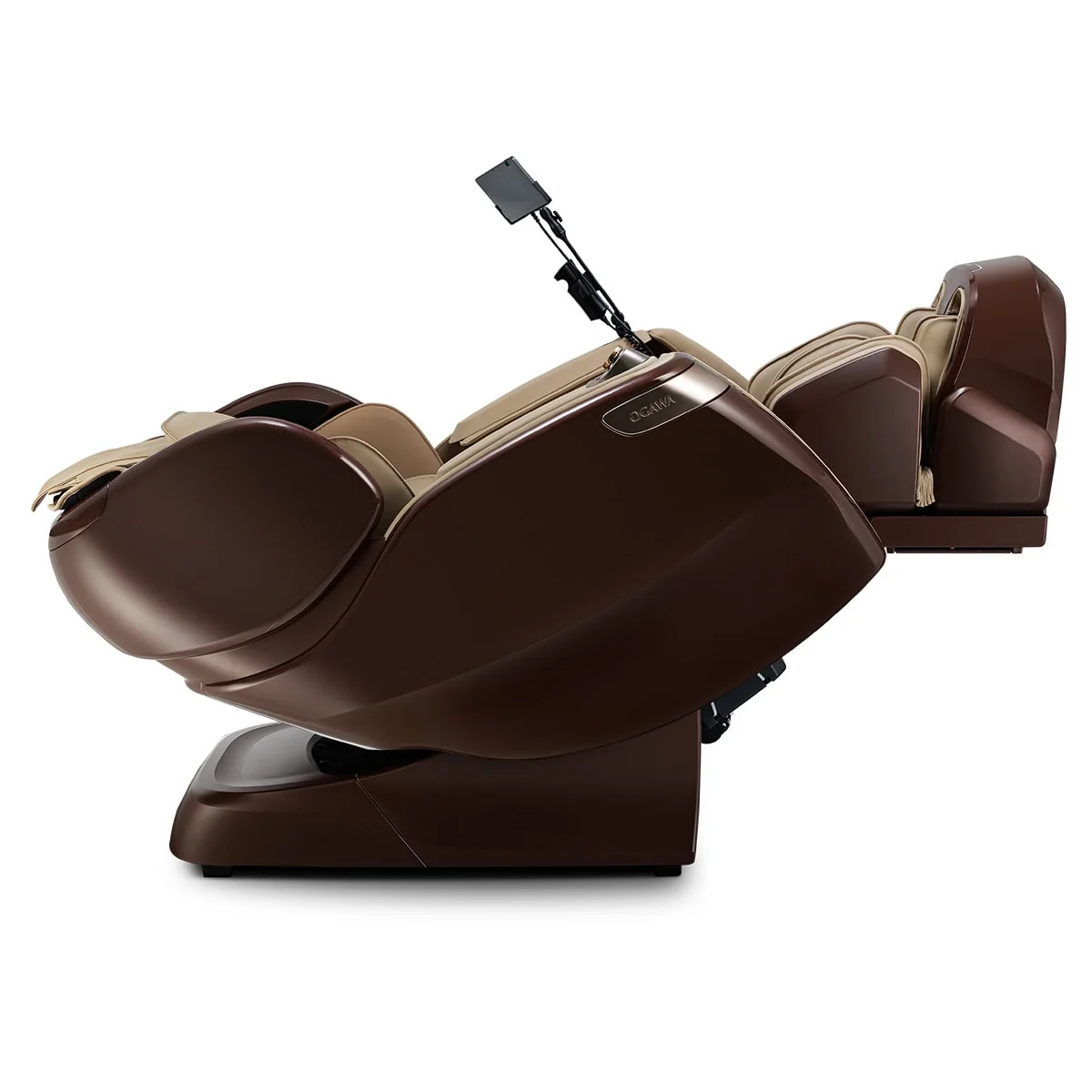

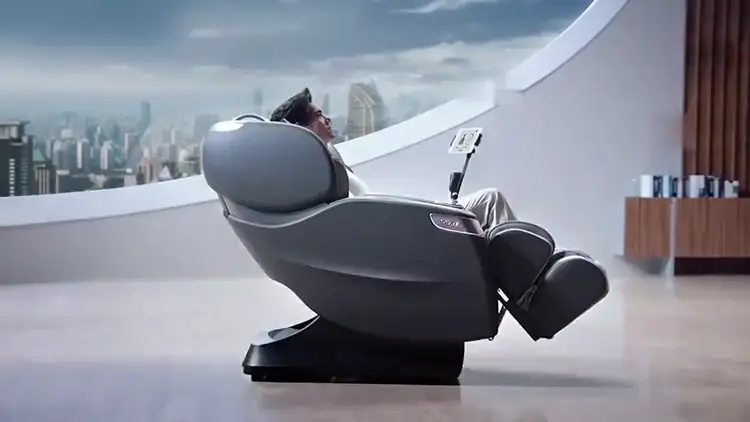

Space-Saving Zero Gravity Recline
The Fusion Master Drive uses a space-saving zero gravity recline to help place the body in a more relaxed position while reducing the amount of rear clearance needed behind the chair.
- Two zero gravity positions help support a more weightless feel.
- Helps reduce pressure along the back during selected sessions.
- Designed to fit more easily into home spaces than a traditional full-recline chair.

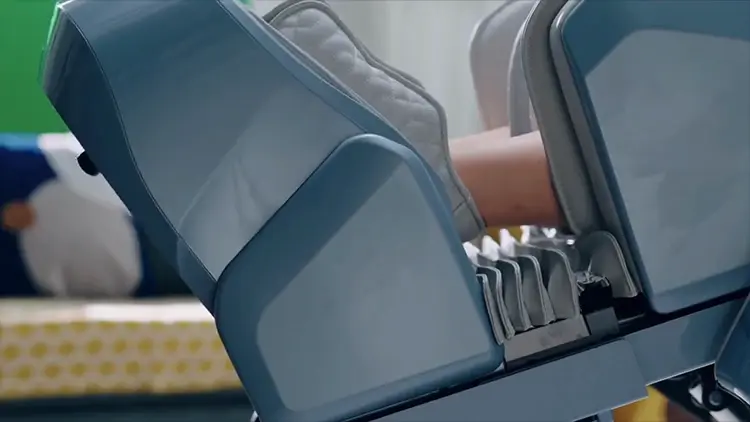

MotionFlex Stretching
MotionFlex Stretching adds active lower-body movement to the massage experience. The footrest is designed to rotate and flex through a wide range of motion to help stretch the calves, ankles, and feet.
- Supports foot and ankle stretching during selected programs.
- Adds more movement to lower-body massage sessions.
- Useful for users who want a stronger stretch-focused massage feel.

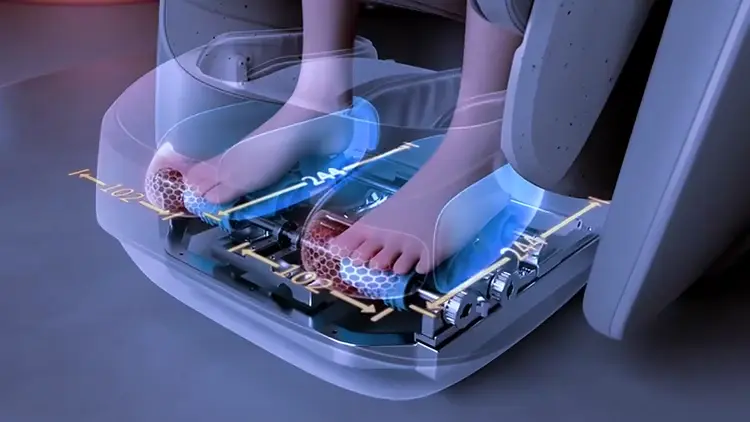

Reflexology Foot Massage
The foot massage system combines rollers and air compression to focus on the soles and pressure areas of the feet. This helps make the lower-body portion of the massage feel more complete.
- Spinning foot rollers target the bottom of the feet.
- Air compression helps hold and support the feet during massage.
- Designed for users who want more attention on tired feet.

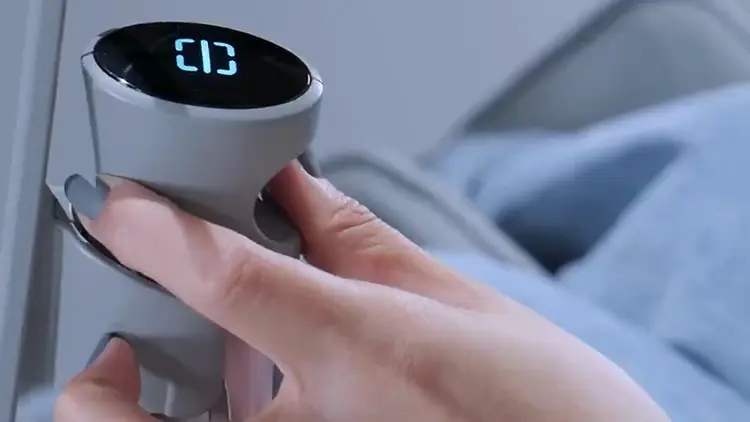

Concierge Chair Doctor
Concierge Chair Doctor uses a palm scan and AI-assisted feedback to recommend a massage based on the user’s current condition. It helps create a more guided massage experience instead of relying only on fixed programs.
- Uses biometric sensing to support personalized massage selection.
- Reads wellness-related signals such as stress, heart rate, and oxygen data.
- Helps guide users toward a massage program that better matches the moment.

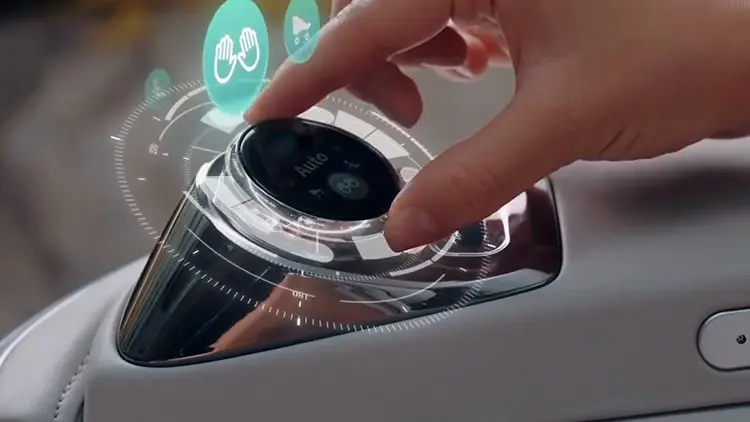

Smart Dial and Touchscreen Control
The full-color Smart Dial and HD touchscreen tablet make it easier to control programs, massage intensity, heat, recline, and custom settings without interrupting the session.
- Smart Dial gives quick access to common comfort adjustments.
- Touchscreen tablet makes programs and settings easier to navigate.
- Designed for simple control while seated in the chair.
Additional comfort and smart features
These supporting features help make the Ogawa 4D Fusion Master Drive more complete for daily relaxation, recovery, and at-home comfort.
M.6 Gen Powered AI
Dedicated microprocessors help the chair respond quickly and adjust massage behavior with more precision during selected programs.
Brushless Motors
High-performance brushless motors are designed for smoother, quieter movement with strong torque and long-term durability.
AI Body Scan
The body scan system helps map the user’s shape and posture so the rollers can be positioned more accurately.
64 Air Chambers
Air compression supports areas such as the shoulders, arms, seat, lumbar, waist, calves, knees, and feet with adjustable intensity.
Heat Therapy
Targeted heat supports the massage area, lumbar area, seat, and legs to help the session feel warmer and more relaxing.
25 Auto Programs
Automatic programs offer different massage styles for relaxation, stretching, focused relief, and daily wellness routines.
Automatic Leg Extension
The leg extension system helps adjust the footrest position to better match the user’s height and leg length.
Bluetooth & Chromotherapy
Bluetooth speakers and soothing LED lighting help create a more immersive relaxation environment at home.
Before you choose the Ogawa 4D Fusion Master Drive
A flagship massage chair should fit your body, your room, and your daily routine. Before purchase, confirm the chair dimensions, wall clearance, doorway width, delivery path, warranty coverage, and return details with Tittac.
- Measure the room where the chair will be placed.
- Check doorway, hallway, stair, and delivery access before ordering.
- Ask about warranty coverage for the specific model.
- Contact Tittac if you want help comparing massage style, chair size, and setup expectations.
Ogawa 4D Fusion Master Drive FAQ
Is the Ogawa 4D Fusion Master Drive a good choice for a flagship massage chair?
Yes. It is best suited for customers who want a premium massage chair with dual 4D massage engines, Li Flex Track, advanced stretching, AI-assisted body sensing, heat therapy, air compression, foot reflexology, and smart controls.
What makes the dual 4D massage engine different?
The chair uses two independent 4D massage engines so the upper and lower body can receive more targeted massage coverage. This helps create a more balanced full-body massage experience.
Does Concierge Chair Doctor replace medical advice?
No. Concierge Chair Doctor is designed to help personalize the massage experience. It should not be treated as medical diagnosis, medical treatment, or a replacement for advice from a healthcare professional.
Does the chair need a lot of wall space?
The product content describes a space-saving recline design with reduced rear clearance needs. You should still measure your room carefully and confirm the final placement before ordering.
Can I customize the massage?
Yes. The chair includes automatic programs, manual controls, stretch programs, and custom program options so users can adjust the massage experience to match their comfort preferences.
How can I choose this chair if I cannot visit the showroom?
You can still get help before ordering. Tittac can walk you through the chair’s massage features, chair size, room fit, delivery expectations, warranty coverage, and return details by phone, text, or chat.
Get help choosing the right massage chair
Whether you visit our showroom or order from out of state, Tittac can help you review chair size, massage style, delivery options, warranty coverage, and return questions before you buy.
- Compare massage style, chair size, and comfort features before ordering.
- Ask about delivery options, setup expectations, warranty coverage, and return details for your location.
- Get help by phone, text, chat, or showroom visit depending on where you live.
Need help before ordering? Talk with Tittac before you choose your massage chair.
Local customers can visit the showroom. Out-of-state customers can still get help by phone, text, or chat before ordering.
Specifications
| Recommended Height Range | 5'0" - 6'5" |
|---|---|
| Weight Capacity | 320 lbs |
| Chair Dimensions | |

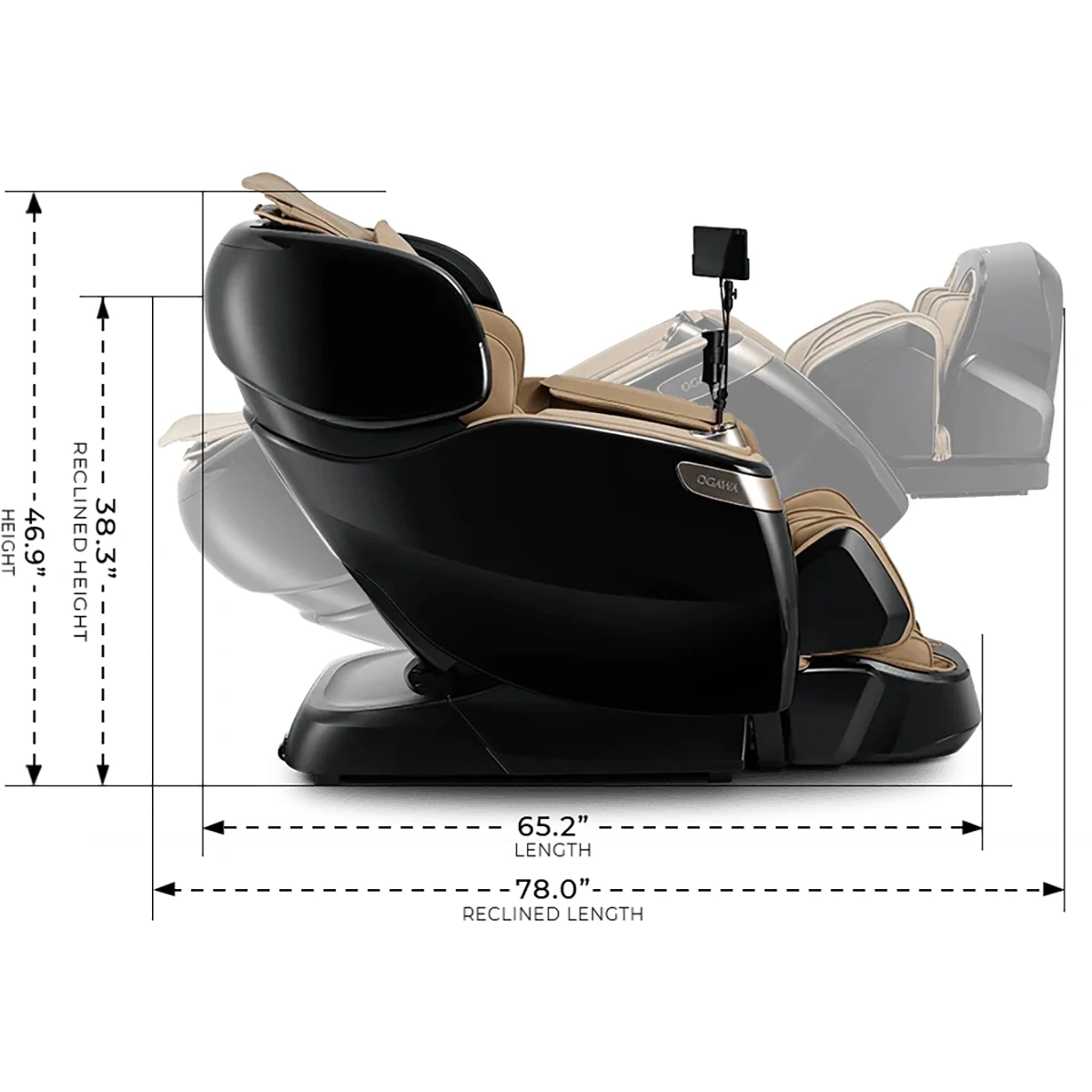

| Chair Dimensions - Upright | 65.2" L x 32" W x 46.9" H |
| Chair Dimensions - Reclined | 78" L x 32" W x 38.3" H |

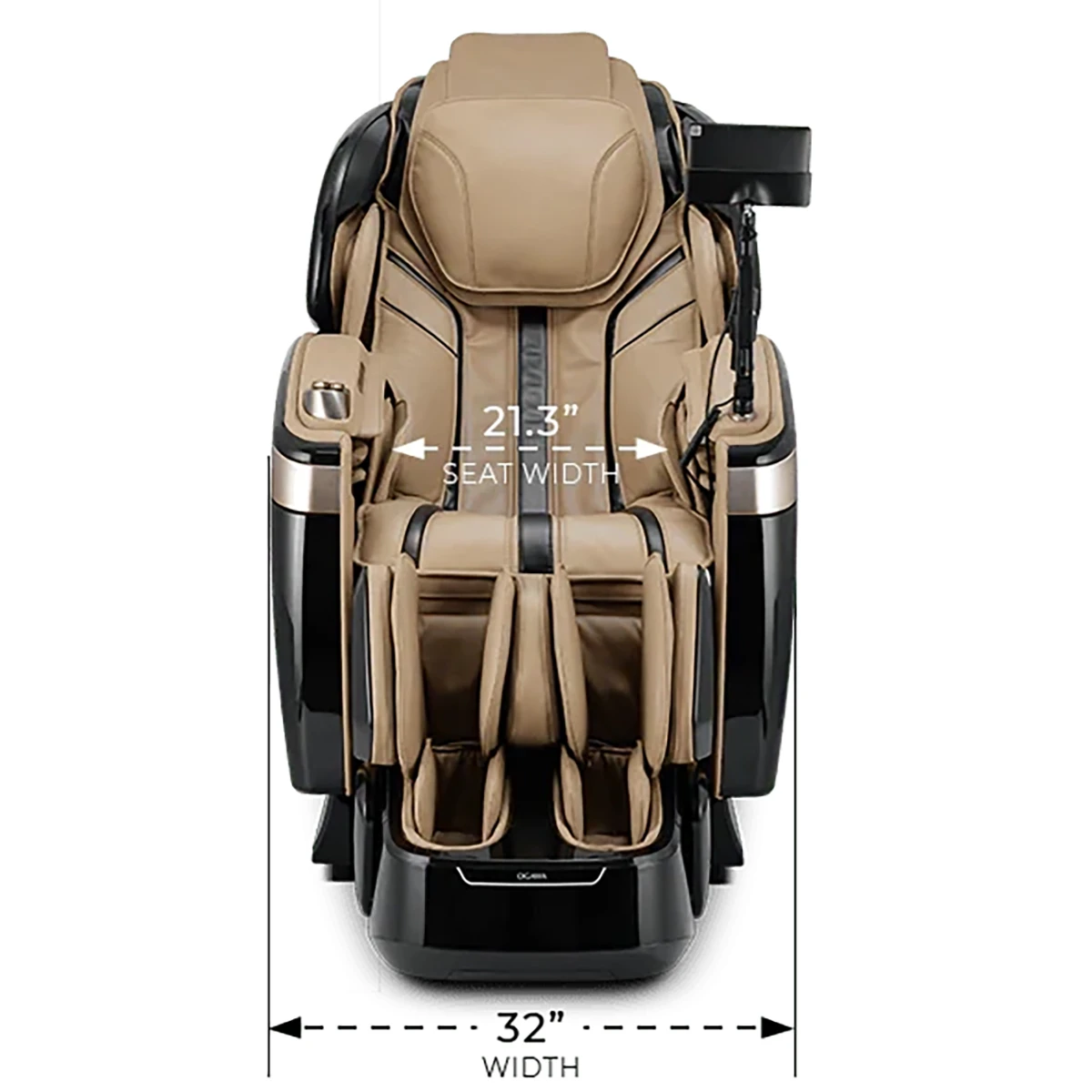

| Seat Width | 21.3" |
| Shoulder Width | 25.4" |
| Distance to Wall | Wall hugging / space saving, 8" |
| Net Weight | 289.9 lbs |
| Package Information | |
| Gross Weight | 339.3 lbs |
| Package Dimensions - Box 1 | 58.5" L x 33.5" W x 41.7" H |
| Package Weight - Box 1 | 271.2 lbs |
| Package Dimensions - Box 2 | 22.4" L x 21.9" W x 25.4" H |
| Package Weight - Box 2 | 68.1 lbs |
| Massage System | |
| Massage Mechanism | 4D + 4D Human-like Vario Motion™ Mechanism |
| Massage Track Type | Li Flex Track massage from neck to buttock |
| Massage Node | 3 inch 4D + 4D Node |
| Massage Techniques | 6 unique massage techniques |
| Foot Massage | Foot and sole roller massage |
| Heat and Air Massage | Yes |
| Heat Therapy | Dual rollers, legs, lumbar, and seat |
| Massage Areas | Shoulder and lumbar, arms, seat and thighs, feet, calves, and knees |
| Airbags | 64 airbags |
| Airbag Intensity Adjustment | 5 air intensity levels |
| Programs & Comfort | |
| Automatic Programs | 25 auto programs + 9 stretch programs + 1 Chair Doctor |
| Manual Programs | 1 manual program + unlimited custom massage |
| Massage Time | 5 - 30 minutes |
| Quick Start Auto Massage | Yes |
| Quick Position Control | Yes |
| Quick Massage Intensity Selection | Yes |
| Quick Foot Roller On / Off | Yes |
| Quick Heating Temperature Adjustment | Yes |
| Adjustable Backrest and Footrest | Yes, adjustable to desired positions |
| Technology & Smart Features | |
| Voice Control | Off-line voice control |
| Smart Dial | Colorful Smart Dial embedded in armrest |
| Chair Doctor | Yes |
| Over the Air Updates | Yes |
| Bluetooth Speakers | Bluetooth speaker for music |
| Body Scanning | Precise body scanning |
| Chromotherapy | 8 modes Chromotherapy lighting in shoulders |
| Low-Noise Operation | Low-noise vent valves and actuators |
| Seat Adjustment & Controls | |
| Controller Type | Wired touch screen control |
| Seat Adjustment | Yes |
| Automatic Calf Adjustment | Yes |
| Auto Leg Length Detection | Yes |
| Inductive Stop Sensors in Footrest | Yes |
| Safety Features | |
| Overheating Protection | Equipped with overheating protection |
| Power Surge Detector | Yes |
| Child Safety Lock | Yes |
| Legrest and Backrest Safety Sensor | Yes, helps prevent pinching while retracting automatically |
| Power & Electrical | |
| Power Voltage | 110 - 120V |
| Rated Frequency | 60Hz |
| Rated Current | 2.5A |
| Power of Speakers | 7W x 2 |
| Charger | Type-C Max 45W |
| Power Supply Wiring Length | 70.9" |
| Environment & Origin | |
| Manufacturing Inspiration | Inspired by Japanese manufacturing |
| Usage Condition | Environmental |
| Operating Temperature | 32°F - 104°F |
| Storage Temperature | 23°F - 95°F |

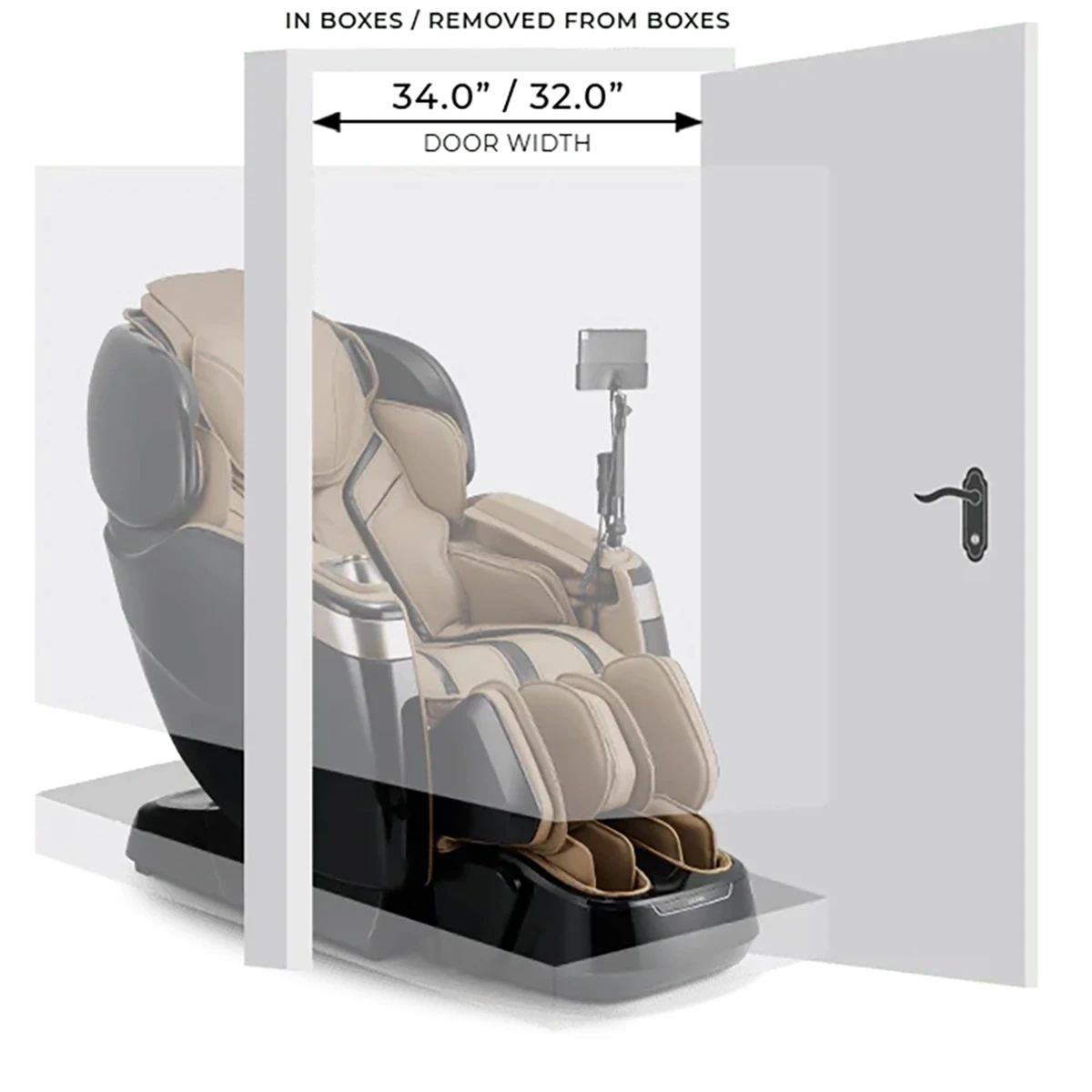

Please measure your room, doorway, hallway, stairway, and delivery path before ordering. Large massage chairs may require partial disassembly for delivery through standard household doorways.
