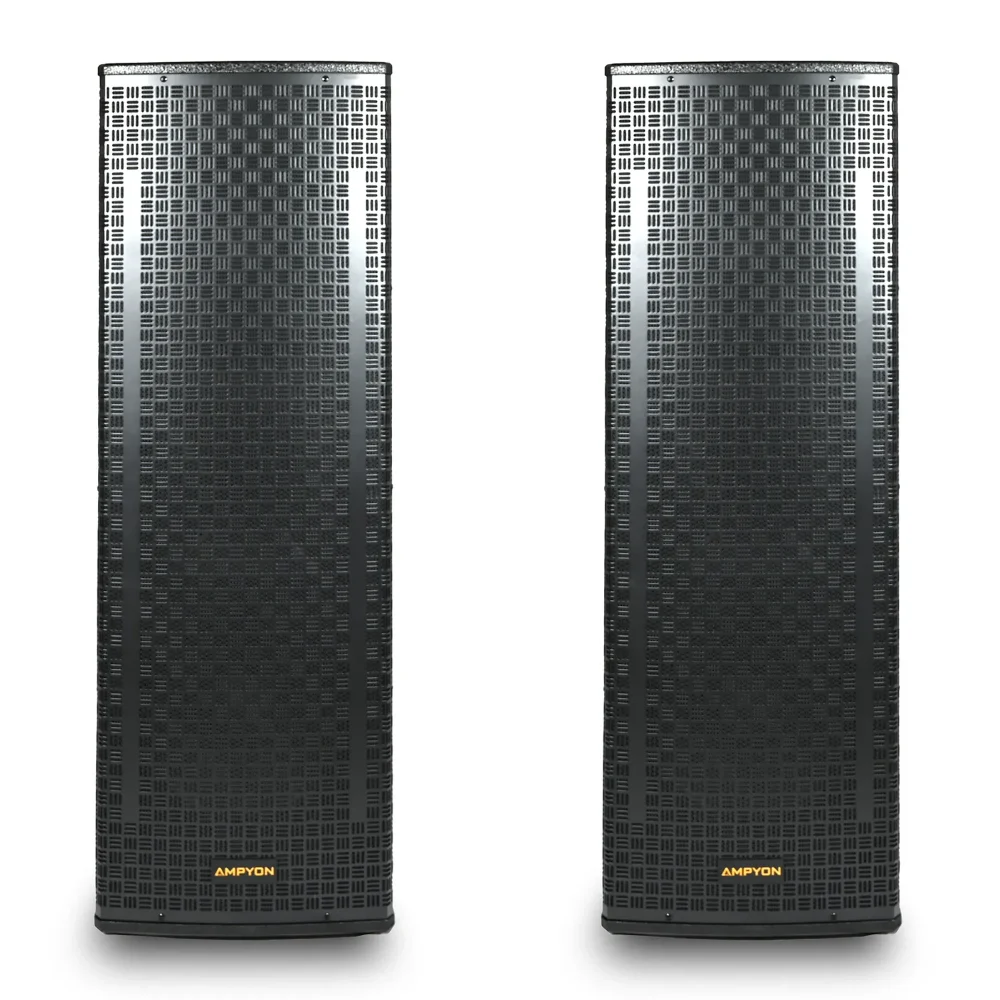

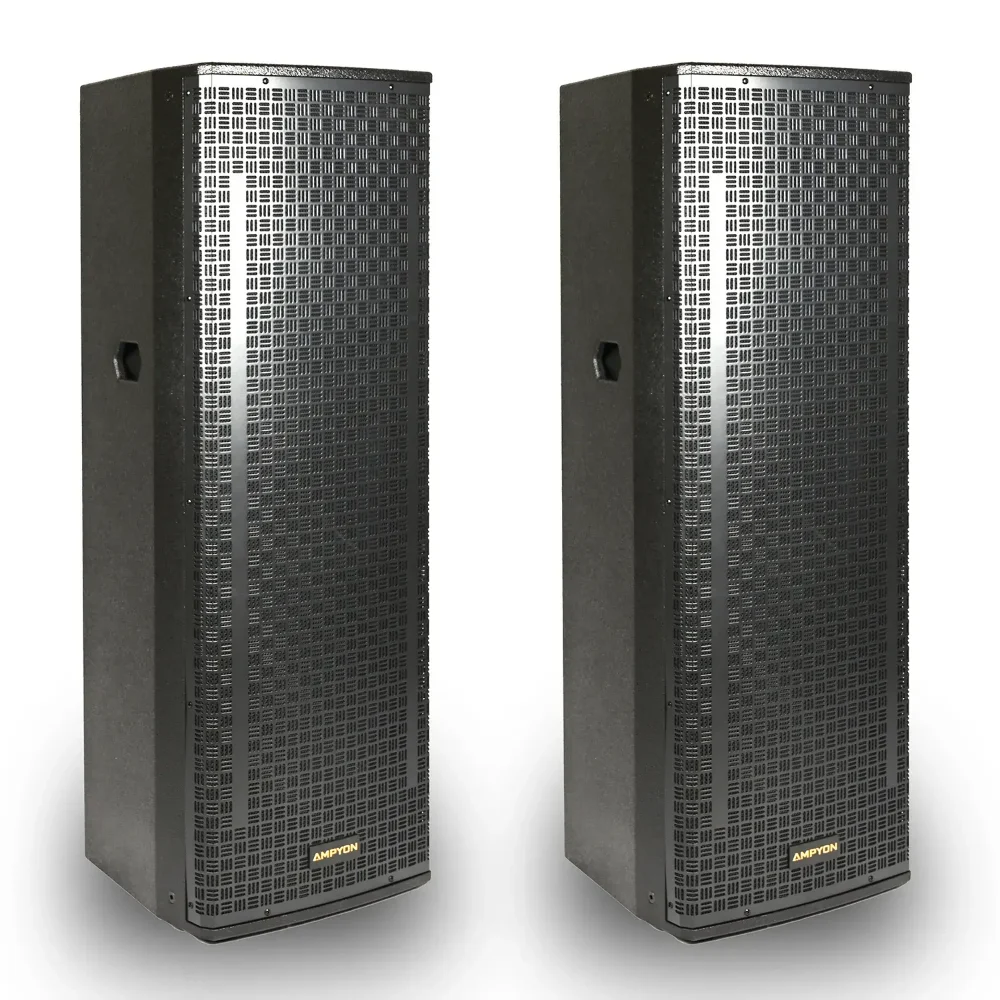

The Ampyon LS-12EX is a large-format passive floor-standing speaker system designed for karaoke, live music, DJs, parties, and demanding home entertainment setups. Each speaker uses dual 12-inch woofers and a high-power compression driver to deliver deep bass, clear vocals, and strong sound projection across larger spaces.
With a combined maximum input power of 1200 watts per pair, 97 dB sensitivity, 8-ohm impedance, durable metal grilles, and professional Speakon input and output connections, the LS-12EX is built for users who want more bass impact, greater room presence, and a more substantial speaker system than a compact karaoke model.
The LS-12EX is a strong fit for:
If you need a larger floor-standing speaker system with deeper bass, more room-filling output, and stronger overall presence than the LS-10EX, the LS-12EX is the natural step up.
Customers choose it for powerful bass, clear vocals, and rugged construction:
The LS-12EX combines the low-frequency weight of dual 12-inch woofers with the vocal clarity and durability needed for frequent karaoke, live music, and event use.
Helpful to know:
For the best result, match the LS-12EX with the correct amplifier power, speaker impedance, room size, speaker quantity, wiring method, and intended listening level.
The LS-12EX is designed to deliver deeper bass, stronger projection, and clear vocal performance in spaces that require a larger speaker system.
Each LS-12EX cabinet uses two 12-inch woofers to produce deeper and more impactful low-frequency output than smaller dual-woofer karaoke speakers.
This configuration is useful for karaoke, live music, DJs, and parties where the system needs stronger bass, greater physical impact, and fuller room presence.
A high-power compression driver handles the mid and high frequencies, helping vocals, lyrics, and instruments remain clear above the stronger bass output.
This is especially important in karaoke and live-performance settings where the singer needs to remain intelligible at higher listening levels.
The LS-12EX is rated from 35 Hz to 20 kHz, providing extended low-frequency reach along with coverage of the main vocal and musical range.
The deeper bass response helps music feel more powerful and complete, while the compression driver supports clear upper-frequency reproduction.
The LS-12EX is rated at 97 dB sensitivity, allowing it to produce strong output from a properly matched amplifier.
Final volume and sound quality still depend on amplifier power, room acoustics, speaker placement, listening distance, and system adjustment.
The LS-12EX supports a combined maximum input power of 1200 watts per pair, rated as 600 watts for each speaker.
This rating should be considered together with the 8-ohm impedance when selecting a compatible amplifier. Clean amplifier power and proper gain adjustment are important for protecting the speakers.
Each LS-12EX speaker has a nominal impedance of 8 ohms.
This specification should be considered when connecting one pair or daisy-chaining additional speakers, because the total speaker load must remain within the amplifier manufacturer’s supported range.
The LS-12EX includes professional-style Speakon input and output connections for secure, locking speaker wiring.
The output connection can also support daisy-chaining with compatible speakers when the amplifier load and system wiring are configured correctly.
The tall floor-standing cabinet provides a stable base and positions the drivers at a useful height for wide sound projection.
This format works well in larger karaoke rooms, event spaces, live-performance setups, and entertainment areas where wall mounting is not practical.
A rugged metal grille protects the woofers and compression driver from accidental contact and regular wear.
The grille also gives the LS-12EX a professional appearance suitable for home karaoke rooms, stages, parties, and event spaces.
The LS-12EX is designed for users who need a speaker system that can handle repeated karaoke sessions, live performances, parties, and music playback.
Its larger cabinet, dual 12-inch woofers, secure connections, and protective grille make it a practical option for more demanding systems.
The LS-12EX can be used with compatible karaoke amplifiers, power amplifiers, DJ systems, and live-performance equipment.
Its combination of bass output, vocal clarity, and secure connectivity makes it useful across several entertainment and performance applications.
Each LS-12EX speaker ships in a separate box with a listed shipping weight of approximately 86 lbs.
Separate packaging can make handling more manageable, but the cabinets are still heavy and should be moved or installed with appropriate care.
The LS-12EX speakers are passive and require a compatible power amplifier or karaoke mixing amplifier. They do not include a built-in amplifier.
The listed maximum input power is 1200W per pair, or 600W per speaker. Amplifier selection should also account for the 8-ohm nominal impedance.
The LS-12EX uses dual 12-inch woofers in each speaker, while the LS-10EX uses dual 10-inch woofers. The LS-12EX also has a higher listed maximum input rating and a larger, heavier cabinet for stronger low-frequency output and room presence.
The LS-12EX uses Speakon input and output connections for secure speaker wiring and compatible daisy-chain setups.
The Speakon output can support daisy-chaining with compatible equipment. However, the combined speaker load must remain within the amplifier’s supported impedance range.
Yes. Its dual 12-inch woofers, compression driver, floor-standing cabinet, and Speakon connections make it suitable for karaoke, DJs, live music, parties, and event spaces when used with compatible amplification.
Each LS-12EX speaker has a listed net weight of approximately 80 lbs. and a shipping weight of approximately 86 lbs.
Yes. Each LS-12EX speaker is packaged in its own shipping box.
Use an amplifier that is compatible with 8-ohm speakers and provides suitable clean power for the LS-12EX. Tittac can help match the speakers with an appropriate amplifier based on your room, number of speakers, and listening needs.
Choosing a large floor-standing speaker system involves more than comparing woofer size or maximum wattage. The LS-12EX should be matched with the right amplifier, microphone system, room size, number of speakers, wiring method, and desired listening level.
Need help before ordering? Talk with Tittac before choosing your speakers, amplifier, microphones, placement, and connection setup.
Tittac Showroom
8762 Garden Grove Blvd Ste 105, Garden Grove, CA 92844
Local customers can visit the showroom. Out-of-state customers can still get help by phone, text, chat, or video before ordering.
| Speaker Type | Passive Floor-Standing Karaoke / Performance Speaker |
|---|---|
| Sold As | Pair |
| Woofer Configuration | 2 x 12-Inch Woofers per Speaker |
| High-Frequency Driver | High-Power Compression Driver |
| Maximum Input Power | 1200W per Pair (600W + 600W) |
| Nominal Impedance | 8 Ohms |
| Sensitivity | 97 dB |
| Frequency Response | 35 Hz - 20 kHz |
| Speaker Connections | Speakon Input and Output |
| Cabinet Design | Floor-Standing Cabinet |
| Driver Protection | Durable Metal Grille |
| Product Dimensions | 44.5"H x 15"W x 14.5"D per Speaker |
| Net Weight | 80 lbs. per Speaker |
| Shipping Weight | 86 lbs. per Speaker |
| Packaging | One Speaker per Shipping Box |
| Recommended Applications | Karaoke, Live Performance, DJ, Parties, Events, and Home Entertainment |
