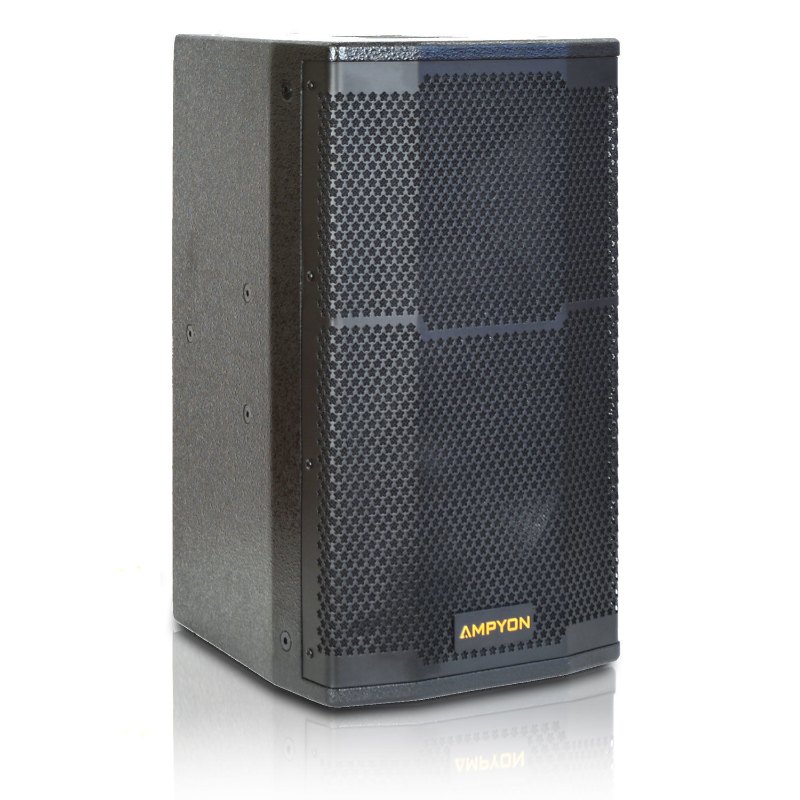

The Ampyon LSX-10ES is a pair of passive karaoke speakers designed for users who want strong sound without using a large amount of floor space. Its compact vertical cabinet combines a 10-inch woofer with a 2-inch high-frequency compression driver to deliver punchy bass, clear vocals, and balanced music playback.
With a combined maximum input power of 700 watts per pair, professional Speakon connections, durable MDF construction, a protective metal grille, and tripod-stand compatibility, the LSX-10ES is a practical choice for home karaoke rooms, karaoke bars, parties, and entertainment spaces where efficient placement matters.
The LSX-10ES is a good fit for:
If you want a karaoke speaker that is easier to position than a larger floor-standing model but still provides useful bass and vocal clarity, the LSX-10ES offers a practical balance of size and performance.
Customers choose it for compact placement and clear sound:
The LSX-10ES combines a compact footprint with the driver configuration and connection options needed for karaoke, music playback, and regular entertainment use.
Helpful to know:
For the best result, match the LSX-10ES with the correct amplifier power, total speaker load, room size, placement, wiring method, and intended listening level.
The LSX-10ES is designed to save space while delivering the bass, vocal presence, and projection needed for everyday karaoke and entertainment.
The LSX-10ES uses a slim vertical cabinet that takes up less floor space than wider or larger stage-style speaker designs.
This format makes the speaker easier to position in home karaoke rooms, karaoke bars, and entertainment spaces where guests, furniture, and performance areas compete for space.
Each LSX-10ES cabinet uses a 10-inch woofer to reproduce bass and lower midrange with useful punch and weight.
The 10-inch format provides stronger low-frequency presence than smaller compact speakers while keeping the cabinet manageable for home and commercial karaoke installations.
A 2-inch high-frequency compression driver reproduces upper mids and treble, helping vocals, lyrics, and instruments remain clear over the bass output.
This is especially important for karaoke because the singer needs to stay intelligible as music and overall volume increase.
The LSX-10ES uses a 2-way design with one woofer and one compression driver in each cabinet.
The woofer handles the lower frequencies while the compression driver reproduces the upper range, creating a simple and balanced configuration for karaoke and music playback.
The LSX-10ES supports a combined maximum input power of 700 watts per pair, rated as 350 watts for each speaker.
Use this rating when selecting a compatible amplifier. Clean amplifier output and proper gain adjustment are important for maintaining sound quality and protecting the speakers.
The LSX-10ES uses a copper-wired voice coil and a double-magnet woofer design.
These components are intended to support stable bass response, consistent output, and reliable performance during karaoke and music playback.

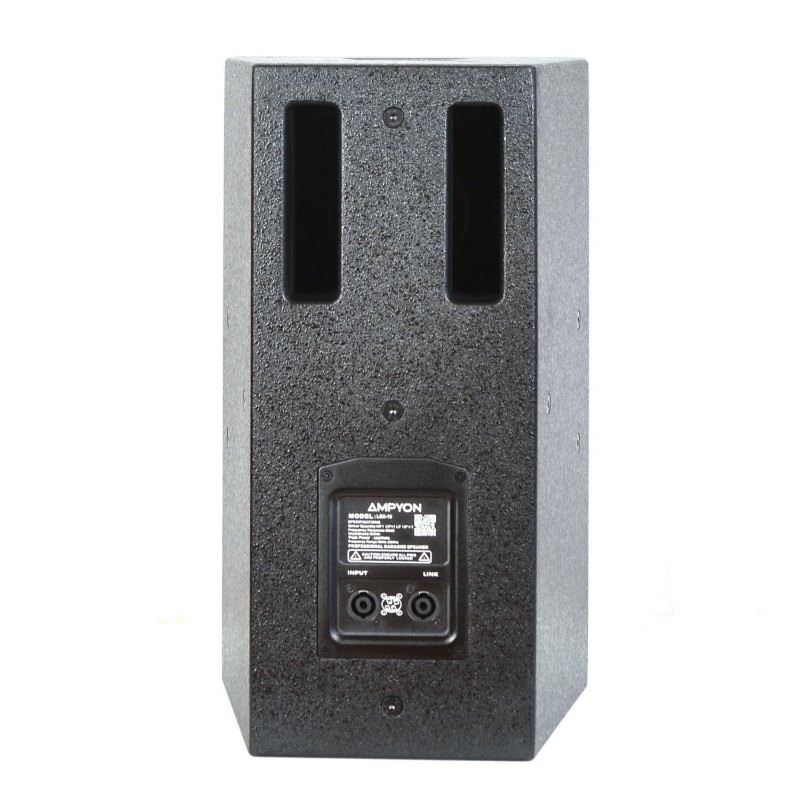

The rear of each LSX-10ES cabinet includes a Speakon speaker connection for secure, locking wiring to a compatible amplifier.
Speakon connectors are commonly used in karaoke and performance systems because they provide a dependable connection and resist accidental disconnection.
The bottom of each speaker includes a stand-mount opening that allows the cabinet to fit on a compatible tripod stand.
An 8 mm mounting point on the bottom provides additional installation flexibility when used with supported mounting hardware.
The LSX-10ES uses black-painted MDF construction to provide a solid enclosure for the woofer and compression driver.
The rigid cabinet helps support consistent sound reproduction and gives the speaker a clean appearance suitable for home and commercial karaoke spaces.
A black front metal grille protects the woofer and compression driver from accidental contact and everyday wear.
The grille also gives the LSX-10ES a professional look while helping protect the drivers during transport, setup, and regular use.
The LSX-10ES can be used with compatible karaoke amplifiers, power amplifiers, DJ systems, and other supported audio equipment.
Its compact cabinet, 10-inch woofer, compression driver, Speakon connection, and stand compatibility make it useful across a variety of entertainment setups.
Each LSX-10ES speaker weighs approximately 37 lbs., making it easier to position than larger dual-woofer floor-standing speakers.
The listed shipping weight is approximately 40 lbs. per speaker. Proper handling is still recommended during transport and installation.

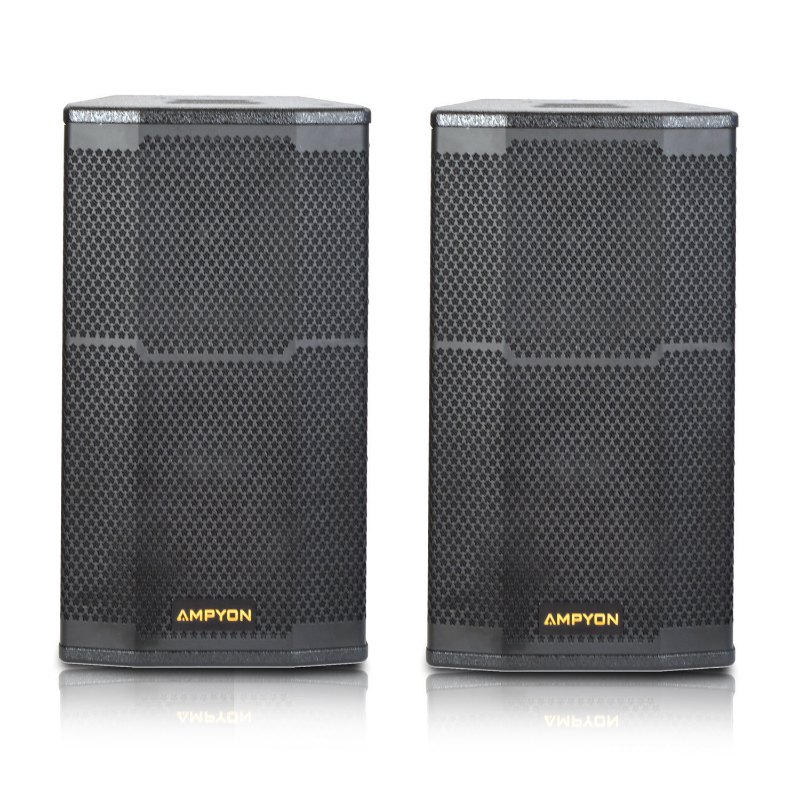

The LSX-10ES is sold as a pair, with two passive speakers included.
The LSX-10ES speakers are passive and require a compatible power amplifier or karaoke mixing amplifier. They do not include a built-in amplifier.
The pair is rated for up to 700W maximum input power, or 350W maximum per speaker.
The LSX-10ES is a 2-way speaker using one 10-inch woofer and one 2-inch high-frequency compression driver in each cabinet.
Its narrow vertical cabinet uses less floor space than wider or larger speaker designs, making it easier to position in home karaoke rooms and commercial entertainment spaces.
The LSX-10ES uses a Speakon speaker connection located on the rear of each cabinet.
Yes. Each cabinet includes a bottom stand-mount opening for a compatible tripod speaker stand.
Each speaker has a listed net weight of approximately 37 lbs. and a shipping weight of approximately 40 lbs.
Use a compatible amplifier that provides suitable clean power for the LSX-10ES and supports the connected speaker load. Tittac can help match the speakers with an appropriate amplifier based on your room and intended use.
Choosing a compact karaoke speaker involves more than comparing cabinet size or wattage. The LSX-10ES should be matched with the right amplifier, microphone system, room size, speaker quantity, wiring method, and desired listening level.
Need help before ordering? Talk with Tittac before choosing your speakers, amplifier, microphones, stands, and connection setup.
Tittac Showroom
8762 Garden Grove Blvd Ste 105, Garden Grove, CA 92844
Local customers can visit the showroom. Out-of-state customers can still get help by phone, text, chat, or video before ordering.
| Speaker Type | Passive 2-Way Vertical Karaoke Speaker |
|---|---|
| Sold As | Pair |
| Cabinet Style | Compact Vertical Design |
| Woofer | 1 x 10-Inch Woofer per Speaker |
| High-Frequency Driver | 1 x 2-Inch Compression Driver per Speaker |
| Voice Coil | Copper-Wired Voice Coil |
| Woofer Magnet | Double-Magnet Design |
| Speaker Design | 2-Way |
| Maximum Input Power | 700W per Pair (350W + 350W) |
| Speaker Connection | Speakon |
| Stand Mount | Bottom Tripod-Stand Socket |
| Additional Mounting Point | 8 mm Mounting Point on Bottom |
| Cabinet Material | Black-Painted MDF |
| Front Protection | Black Metal Grille |
| Driver Layout | Woofer Below; Compression Driver Above |

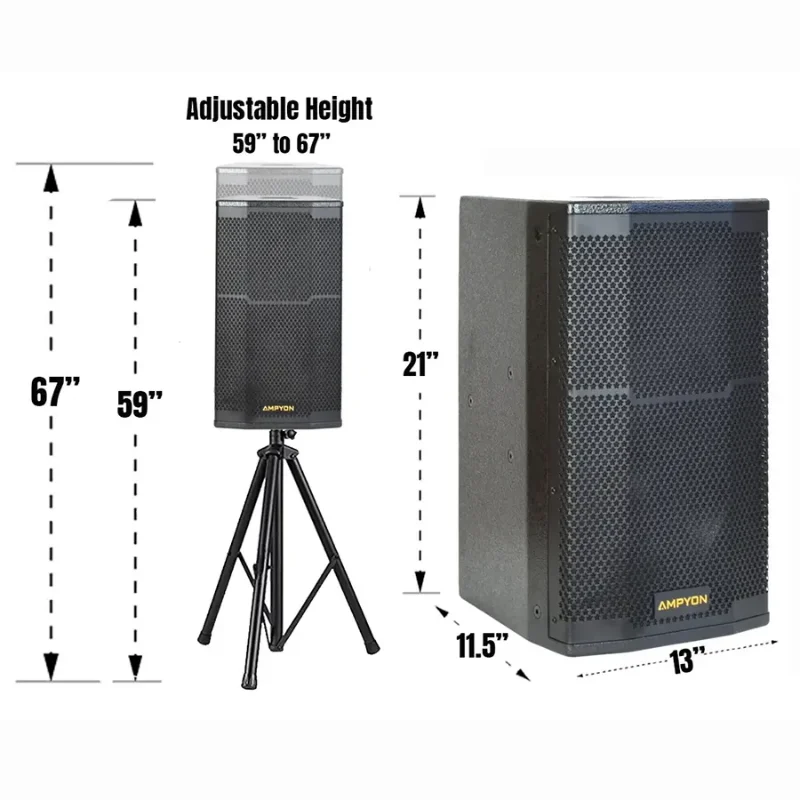

| Product Dimensions | 21"H x 13"W x 11.5"D per Speaker |
| Net Weight | 37 lbs. per Speaker |
| Shipping Weight | 40 lbs. per Speaker |
| Recommended Applications | Home Karaoke, Karaoke Bars, DJ, Parties, and Entertainment |
