The Ampyon LSX-12 is a pair of passive karaoke speakers designed for strong bass, clear vocal projection, and reliable music playback. Each speaker combines a 12-inch woofer with a 2-inch high-frequency compression driver to deliver a balanced sound suitable for home karaoke rooms, parties, lounges, and entertainment spaces.
With a combined maximum input power of 900 watts per pair, professional Speakon connections, durable MDF construction, a protective metal grille, and tripod-stand compatibility, the LSX-12 is a practical choice for users who want the added low-frequency impact of a 12-inch speaker without moving to a larger dual-woofer floor-standing system.
The LSX-12 is a good fit for:
If you want a durable 12-inch passive karaoke speaker that balances bass impact, vocal clarity, and manageable cabinet size, the LSX-12 offers a practical all-around solution.
Customers choose it for bass output, vocal clarity, and practical installation:
The LSX-12 combines a strong woofer system with a compression driver designed to keep karaoke vocals clear and present above the music.
Helpful to know:
For the best result, match the LSX-12 with the correct amplifier power, total speaker load, room size, placement, wiring method, and intended listening level.
The LSX-12 is designed to add stronger low-frequency impact while maintaining clear vocals and balanced music playback through a practical 2-way system.
Each LSX-12 cabinet uses a 12-inch woofer to reproduce bass and lower midrange with greater weight than smaller karaoke speakers.
The larger woofer helps music feel fuller and gives karaoke tracks stronger low-frequency presence during singing, parties, and everyday entertainment.
A 2-inch high-frequency compression driver reproduces upper mids and treble, helping vocals, lyrics, and instruments remain clear above the bass output.
This is especially important for karaoke because vocal intelligibility needs to remain strong as the music and overall volume increase.
The LSX-12 uses a 2-way design with one woofer and one compression driver in each cabinet.
The woofer handles the lower frequencies while the compression driver reproduces the upper range, creating a simple and balanced configuration for karaoke and music playback.
The LSX-12 uses a copper-wired voice coil and a double-magnet woofer design.
These components are intended to support stable bass response, consistent output, and reliable performance during regular karaoke and entertainment use.
The LSX-12 supports a combined maximum input power of 900 watts per pair, rated as 450 watts for each speaker.
Use this rating when selecting a compatible amplifier. Clean amplifier output and proper gain adjustment are important for maintaining sound quality and protecting the speakers.
The LSX-12 is designed to provide the low-frequency energy needed for music while keeping the singer’s voice clear and present.
Final sound quality still depends on the amplifier, microphone system, equalization, room acoustics, and speaker placement.

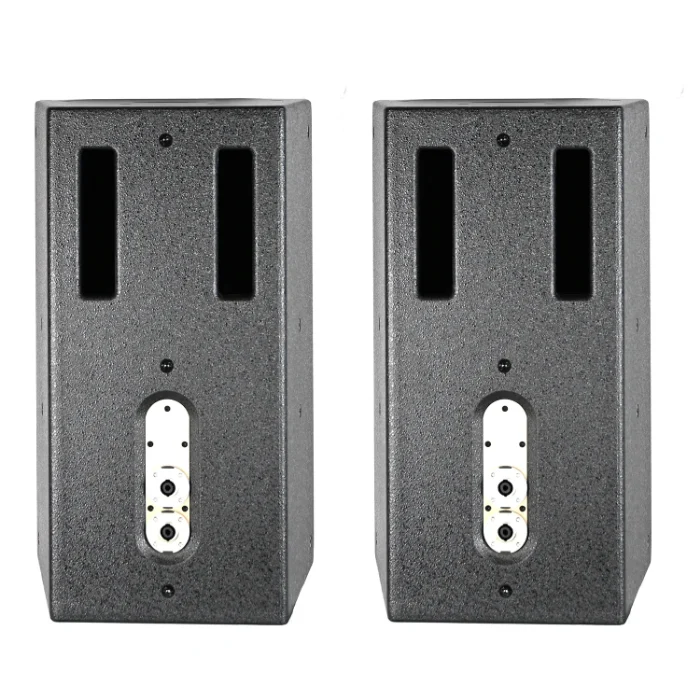

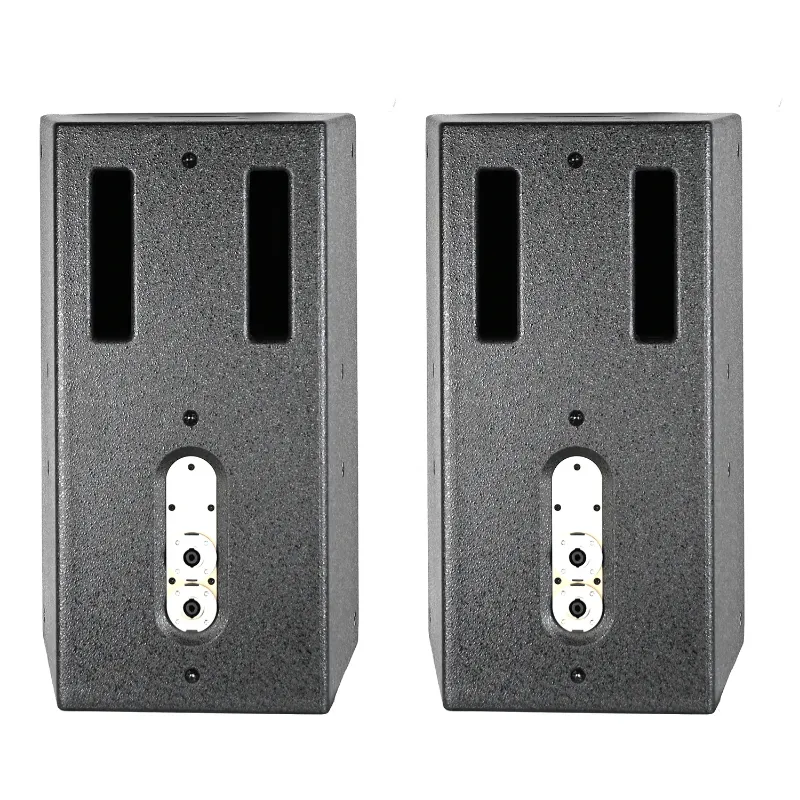

The rear of each LSX-12 cabinet includes a Speakon speaker connection for secure, locking wiring to a compatible amplifier.
Speakon connectors are commonly used in karaoke and performance systems because they provide a dependable connection and help prevent accidental disconnection.
The bottom of each speaker includes a stand-mount opening that allows the cabinet to fit on a compatible tripod stand.
Raising the speaker can improve vocal projection, room coverage, and separation between the microphones and speaker cabinets.
The LSX-12 uses black-painted MDF construction to provide a solid enclosure for the woofer and compression driver.
The rigid cabinet helps support consistent sound reproduction while giving the speaker a clean appearance suitable for home and commercial entertainment spaces.

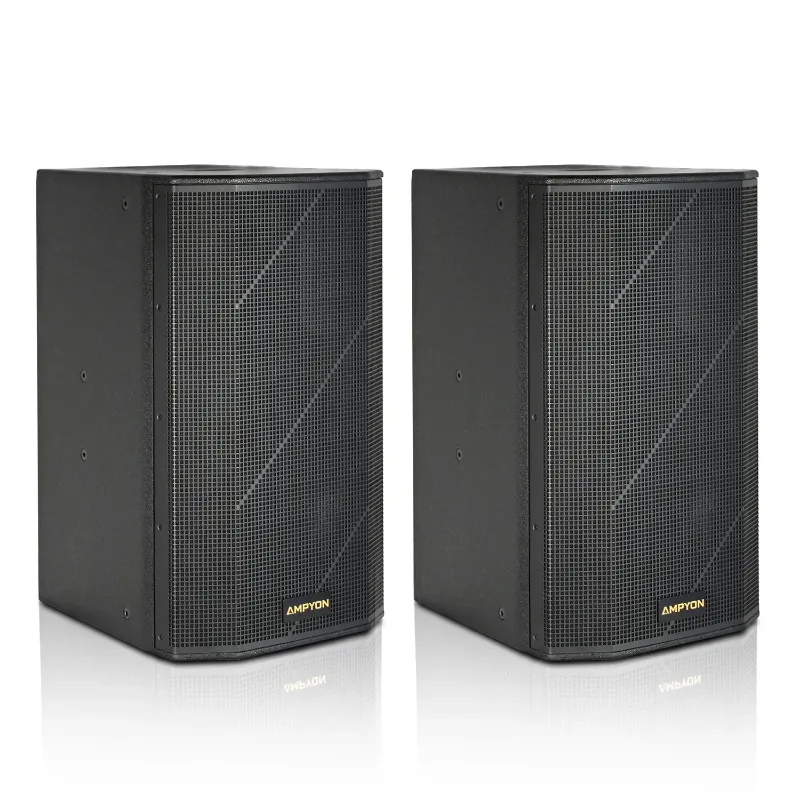

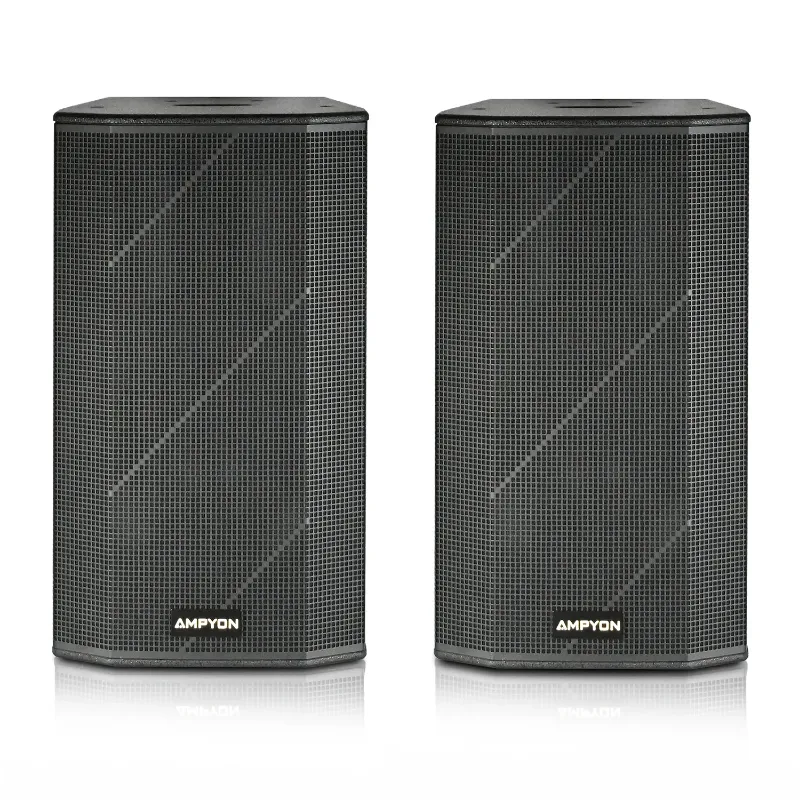

A black front metal grille protects the woofer and compression driver from accidental contact and everyday wear.
The grille also gives the LSX-12 a professional appearance while helping protect the drivers during transport, setup, and regular use.
The LSX-12 can be used with compatible karaoke amplifiers, power amplifiers, DJ systems, and other supported audio equipment.
Its 12-inch woofer, compression driver, Speakon connection, and stand compatibility make it useful for home karaoke rooms, lounges, parties, and smaller event systems.
Each LSX-12 speaker weighs approximately 43 lbs., making it easier to position than larger dual-woofer floor-standing models.
The listed shipping weight is approximately 46 lbs. per speaker. Proper handling is still recommended during transport and installation.
The LSX-12 is sold as a pair, with two passive speakers included.
The LSX-12 speakers are passive and require a compatible power amplifier or karaoke mixing amplifier. They do not include a built-in amplifier.
The pair is rated for up to 900W maximum input power, or 450W maximum per speaker.
The LSX-12 is a 2-way speaker using one 12-inch woofer and one 2-inch high-frequency compression driver in each cabinet.
The LSX-12 uses a Speakon speaker connection located on the rear of each cabinet.
No. The LSX-12 is a passive speaker and must be connected to a compatible amplifier. Phones and other sources should connect through the amplifier or audio system.
Yes. Each cabinet includes a bottom stand-mount opening for a compatible tripod speaker stand.
Each speaker has a listed net weight of approximately 43 lbs. and a shipping weight of approximately 46 lbs.
Use a compatible amplifier that provides suitable clean power for the LSX-12 and supports the connected speaker load. Tittac can help match the speakers with an appropriate amplifier based on your room and intended use.
Choosing a 12-inch karaoke speaker involves more than comparing woofer size or wattage. The LSX-12 should be matched with the right amplifier, microphone system, room size, speaker quantity, wiring method, and desired listening level.
Need help before ordering? Talk with Tittac before choosing your speakers, amplifier, microphones, stands, and connection setup.
Tittac Showroom
8762 Garden Grove Blvd Ste 105, Garden Grove, CA 92844
Local customers can visit the showroom. Out-of-state customers can still get help by phone, text, chat, or video before ordering.
| Speaker Type | Passive 2-Way Karaoke Speaker |
|---|---|
| Sold As | Pair |
| Woofer | 1 x 12-Inch Woofer per Speaker |
| High-Frequency Driver | 1 x 2-Inch Compression Driver per Speaker |
| Voice Coil | Copper-Wired Voice Coil |
| Woofer Magnet | Double-Magnet Design |
| Speaker Design | 2-Way |
| Maximum Input Power | 900W per Pair (450W + 450W) |
| Speaker Connection | Speakon |
| Stand Mount | Bottom Tripod-Stand Socket |
| Cabinet Material | Black-Painted MDF |
| Front Protection | Black Metal Grille |
| Product Dimensions | 23.75"H x 14"W x 16"D per Speaker |
| Net Weight | 43 lbs. per Speaker |
| Shipping Weight | 46 lbs. per Speaker |
| Recommended Applications | Home Karaoke, Lounges, Parties, DJ, and Entertainment |
