Ampyon LXA-320 — Professional Karaoke Mixing Amplifier
The Ampyon LXA-320 is a professional karaoke mixing amplifier built for customers who want detailed vocal control, flexible TV connections, and a more traditional hands-on mixing layout.
With HDMI, Optical, Coaxial, Bluetooth, USB recording/playback, DSP sound processing, key pitch control, and multiple microphone inputs, the LXA-320 is a strong fit for home karaoke rooms, entertainment spaces, garage karaoke setups, and customers who want more manual control over music and vocals.
Who this is for
The LXA-320 is ideal for:
- Customers who want more hands-on karaoke sound control

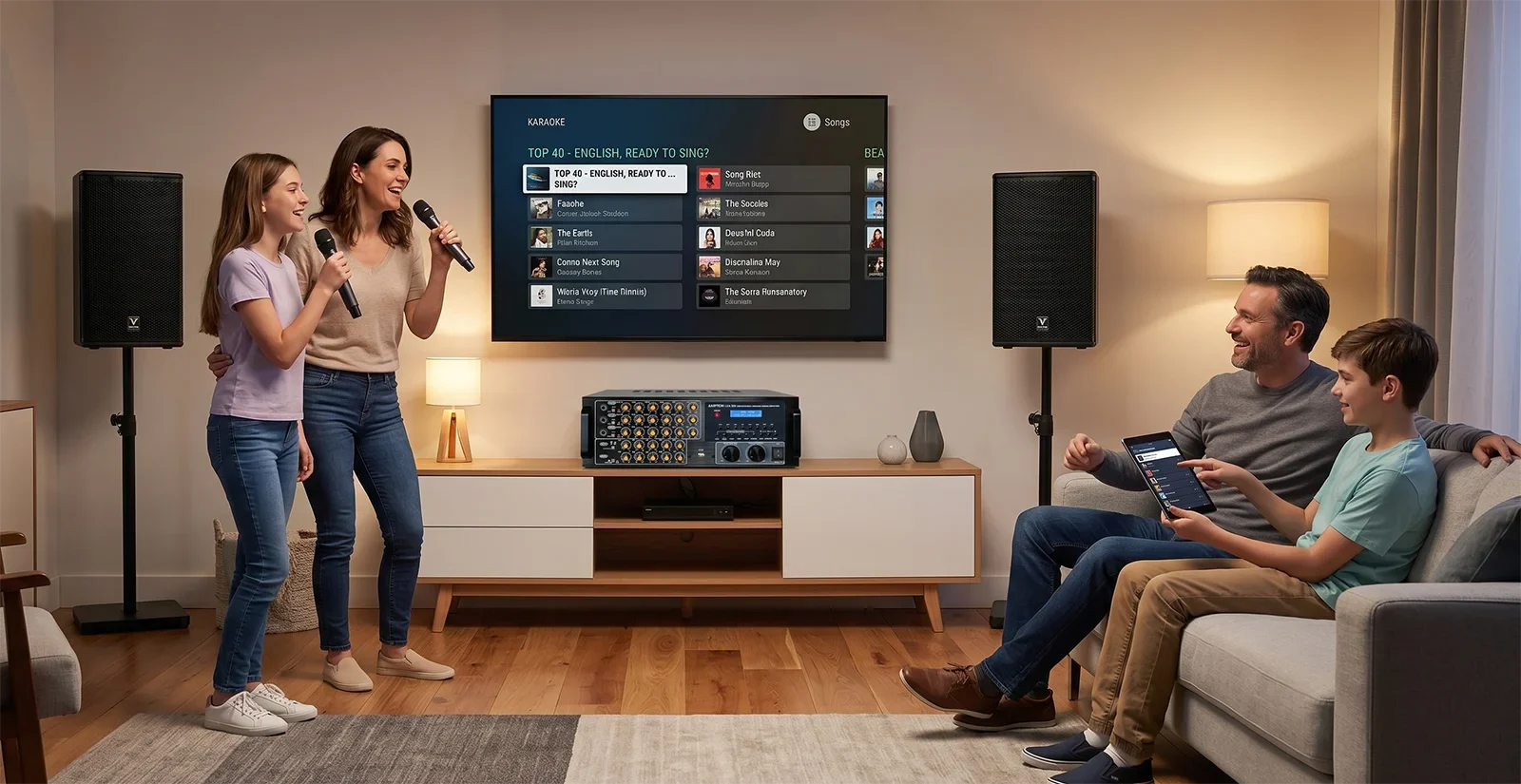

- Home karaoke rooms, larger living rooms, and entertainment spaces
- Users who prefer physical knobs for microphone, echo, and music adjustment
- Families or karaoke hosts who want flexible TV, Bluetooth, and USB options
If you prefer direct knob-based control instead of relying mostly on touchscreen presets, the LXA-320 gives you a more hands-on way to shape karaoke sound.
Why customers choose LXA-320
Customers choose it for control, connectivity, and karaoke flexibility:
- DSP digital sound processing for music and vocal tuning
- Optical and Coaxial inputs for Smart TV karaoke setups
- HDMI support for modern media sources
- USB recording and playback support
- Multiple microphone inputs for flexible singing setups
The LXA-320 is a practical choice for customers who want more control over microphone tone, music balance, echo feel, and source selection.
Quick notes before you buy
Helpful to know:
- This is a karaoke amplifier, not an all-in-one speaker
- You still need compatible karaoke speakers
- This model is better for users who like manual sound adjustment
- For best results, match the amplifier with the right speakers and room size
The LXA-320 performs best when it is paired with the right karaoke speakers, room size, microphone setup, and volume needs.
DSP Processing, USB Recording, and Flexible Karaoke Connections
The LXA-320 combines traditional karaoke mixing controls with modern source options for TV, Bluetooth, HDMI, Optical, Coaxial, and USB use.

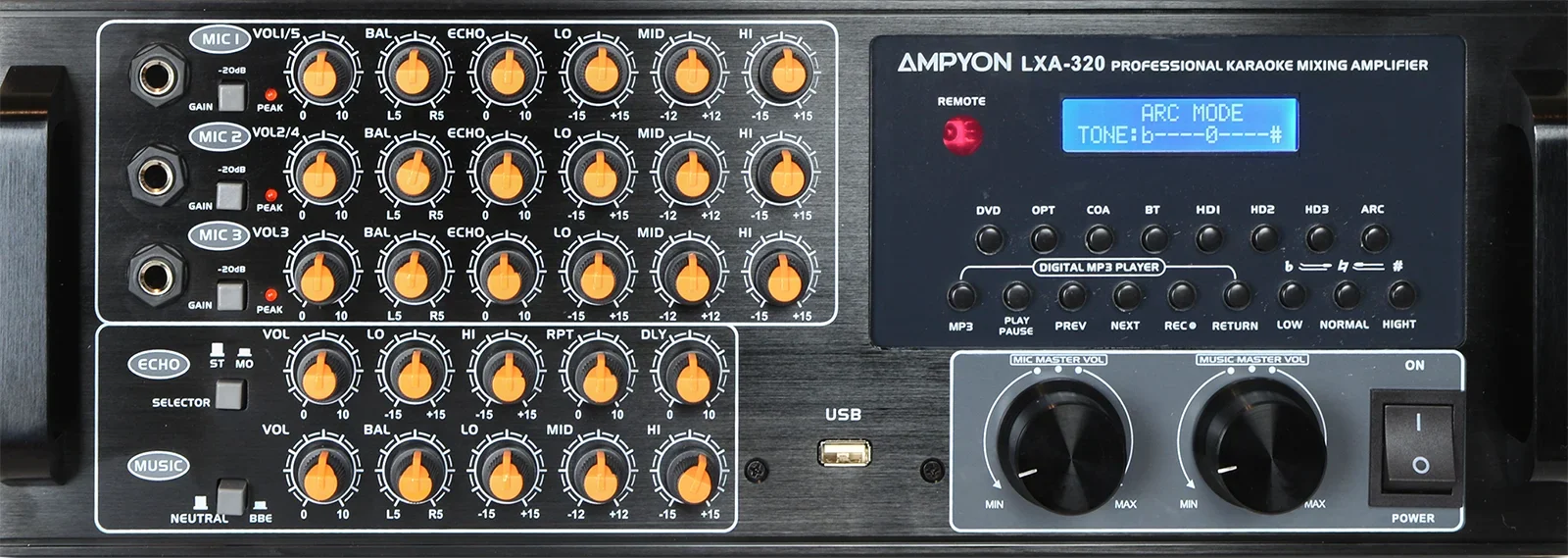

Professional Mixing Layout
The LXA-320 gives users direct access to important karaoke controls without digging through complicated menus.
With separate sections for microphone, echo, and music adjustment, it is easier to fine-tune the sound for different singers, rooms, and music sources.
DSP and BBE Sound Support
DSP digital sound processing helps shape the music and vocal response for a cleaner karaoke experience.
Built-in BBE Sonic Maximizer support is designed to help both vocal and music sound more detailed when the system is matched and adjusted properly.
Detailed Music and Microphone Control
The LXA-320 gives you more control over how the music and microphones sit together in the room.
- Music low, mid, high, balance, and volume controls
- Microphone low, mid, high, echo, balance, and volume controls
- Microphone delay, repeat, echo, low, and high adjustment
- Master microphone control
- Master echo control
- Master volume control
Key Pitch and Vocal Tools
The LXA-320 includes key pitch control so singers can adjust the song key to better match their vocal range.
It also supports vocal cancellation, which can help reduce lead vocals on certain audio tracks. Results can vary depending on the original recording and music source.
Flexible TV and Media Connections
The LXA-320 supports multiple connection options for modern karaoke sources and entertainment setups.
- Bluetooth for wireless music playback from compatible devices
- Optical and Coaxial audio input for Smart TV karaoke
- HDMI inputs and HDMI output for supported video/audio setups
- USB recording and playback support
- Individual input selector for easier source control
Speaker, Output, and Setup Flexibility
The LXA-320 gives users several output options for building a more complete karaoke system.
- Banana plug speaker connectors
- Record output
- Line output
- Subwoofer output
- Optical output
- Pre-input and pre-output for equalizer use
Included Accessories
The LXA-320 includes basic accessories for daily control and power connection.
- Remote control
- Power cable
These accessories help make the amplifier easier to operate and connect as part of a complete karaoke setup.
Frequently Asked Questions Before You Buy
What makes the LXA-320 different from touchscreen karaoke amplifiers?
The LXA-320 uses a more traditional control layout with many physical knobs for microphone, echo, and music adjustment. It is a better fit for customers who want hands-on control instead of relying mostly on touchscreen presets.
Can I use the LXA-320 with a TV and YouTube karaoke?
Yes. The LXA-320 supports Optical, Coaxial, HDMI, Bluetooth, and USB options, so it can work well in TV-based karaoke and YouTube karaoke setups when connected properly.
Does the LXA-320 support USB recording?
Yes. The LXA-320 supports USB recording and playback, allowing users to record their singing and play back compatible audio files through the system.
Does this amplifier include wireless microphones?
This product overview lists the LXA-320 as a mixing amplifier. If you need wireless microphones, Tittac can help you pair it with a compatible microphone system for your karaoke setup.
Do I still need separate speakers?
Yes. The LXA-320 is a karaoke mixing amplifier, not an all-in-one speaker. You still need compatible karaoke speakers, and Tittac can help match the amplifier with the right speaker setup for your room.
Should I hear the LXA-320 before buying?
If possible, yes. A mixing amplifier can sound different depending on the speakers, room size, microphone settings, and music source. Visiting the Tittac showroom can help you hear the LXA-320 in a real karaoke setup before choosing your system.
Get help matching the LXA-320 with the right speakers
Choosing a karaoke mixing amplifier is not only about inputs, knobs, or sound-processing features. The LXA-320 should be matched with the right speakers, room size, TV connection, microphone system, and the way you actually sing.
- Compare speaker and microphone options that work well with the LXA-320 based on your room size and singing style.
- Ask about TV connection, USB recording, manual sound adjustment, subwoofer expansion, warranty, and setup expectations.
- Visit the showroom to hear the LXA-320 with a real speaker setup, or get help by phone, text, chat, or video if you are out of state.
Need help before ordering? Talk with Tittac before you choose your amplifier, speaker, and microphone setup.
Tittac Showroom
8762 Garden Grove Blvd Ste 105, Garden Grove, CA 92844
Local customers can visit the showroom. Out-of-state customers can still get help by phone, text, chat, or video before ordering.
Specifications
| Max Power | 1500W + 1500W |
|---|---|
| RMS Power | 300W + 300W |
| Voltage | 110 - 140 Volts |
| Music Effect | Treble, Bass, Mid |
| Microphone Effect | Treble, Bass, Mid, Repeat, Delay |
| Anti Feedback | Yes |
| Speaker Wattage Impedance | 4 Ohm - 8 Ohm |
| Digital Inputs | Optical & Coaxial |
| HDMI Inputs | 3 HDMI Inputs & 1 HDMI Arc |
| Audio Input | DVD/VOB/USB/Bluetooth Function |
| Audio Output | Rec Out, Subwoofer |
| Microphone Inputs | 5 1/4 Plugs |
| Speaker Connectors | Bananas & Speakon |
| Product Dimensions | 17"W x 6.25"H x 14"D |
| Product Weight | 35 LBS |
| What's In The Box | KA-402 Amplifier, Remote Control, Owner's Manual, Power Cable |
